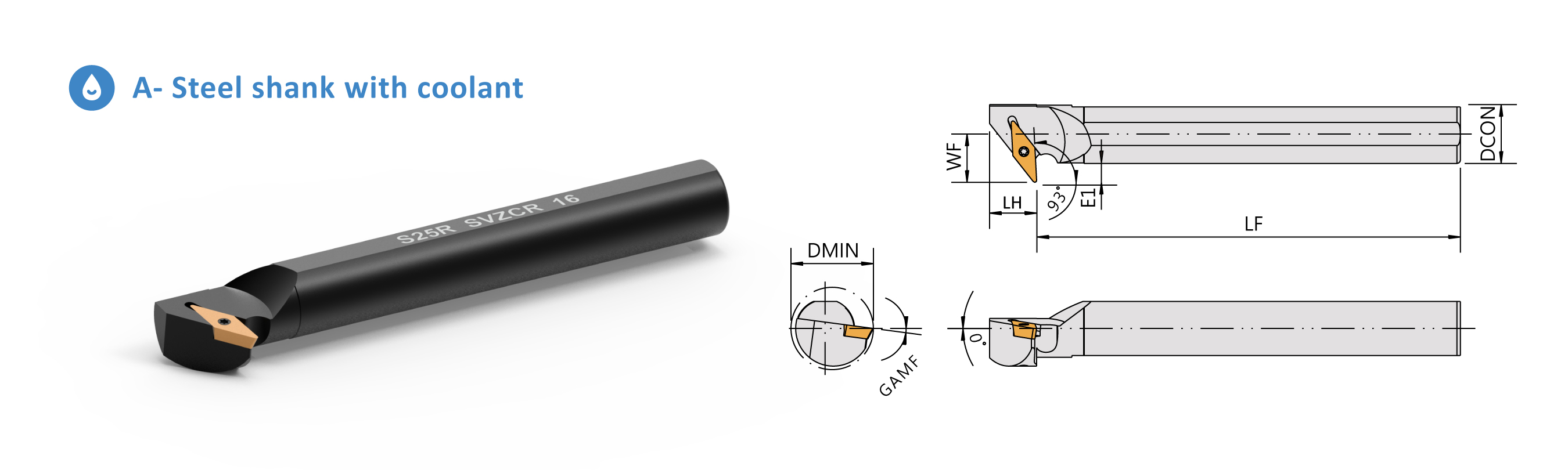

Boring Bars S-SVZC 93°

Please click the picture to enlarge.

Specification

Order No.	Insert	Dimensions(mm)							Parts	Wrench
Right/Left		DCON	WF	E1	LF	DMIN	LH	GAMF
S16Q-SVZCR/L11	VCMT1103	16	13	5	180	20	10	7.5°	CS25061S	FT-7
S20R-SVZCR/L11	VCMT1103	20	15	5	200	26	10	7.5°	CS25061S	FT-7
S20R-SVZCR/L16	VCMT1604	25	17	7	200	30	20	7.5°	CS35090	FT-15
S25R-SVZCR/L16	VCMT1604	25	19.5	7	250	35	20	7.5°	CS35090	FT-15
S32S-SVZCR/L16	VCMT1604	32	23	7	250	40	20	7.5°	CS35090	FT-15
S40T-SVZCR/L16	VCMT1604	40	27	7	300	50	20	7.5°	CS35090	FT-15
