Boring Bars S-CTUP 93°

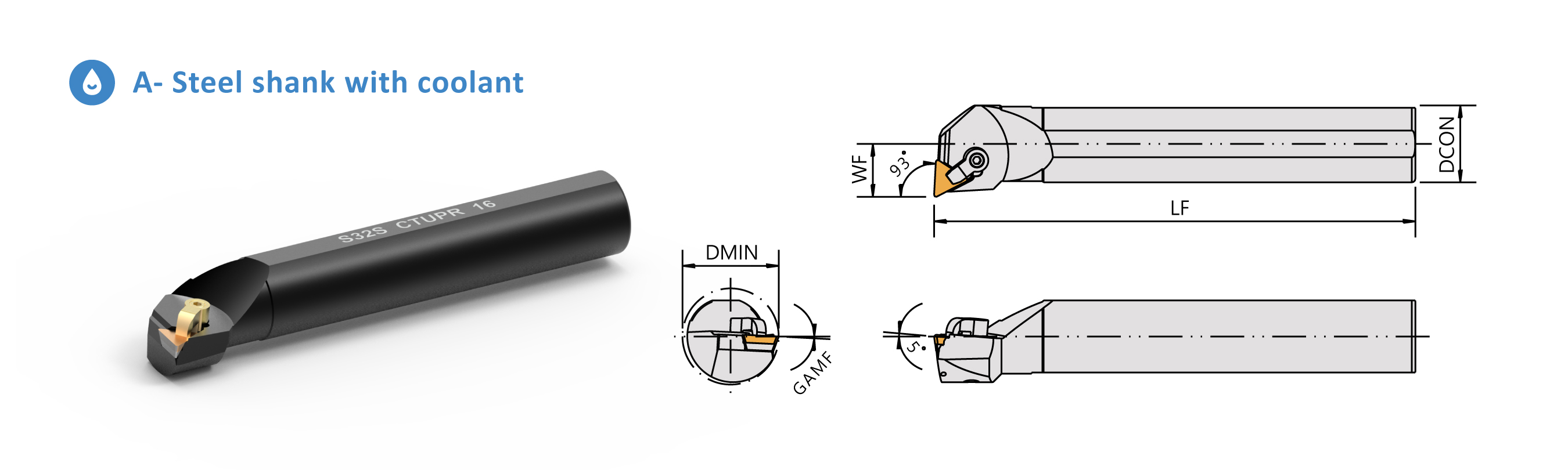

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right / Left DCON WF LF DMIN GAMF
S12M-CTFPR/L11 TPMN1103 12 9 150 16 - - CP50-27S LW025
S16Q-CTFPR/L11 TPMN1103 16 11 180 20 - - CP50-21 CS7-5015 LW025
S20R-CTFPR/L11 TPMN1103 20 13 200 25 - - CP50-21 CS7-5015 LW025
S25R-CTFPR/L16 TPMN1603 25 17 200 32 SMT-321 CS20045 CP50-22 CS7-6024 LW030
S32S-CTFPR/L16 TPMN1603 32 22 250 40 SMT-321 CS20045 CP50-22 CS7-6024 LW030
