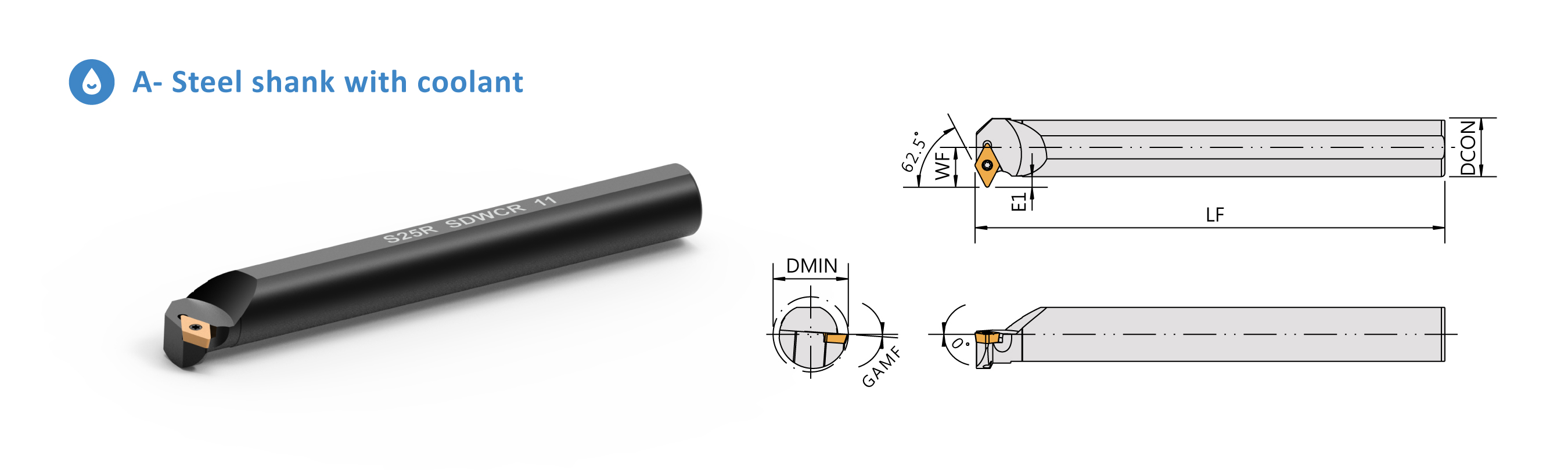

Boring Bars S-SDWC 62.5°

Please click the picture to enlarge.

Specification

Order No.InsertDimensionsPartsWrench
Right/Left DCON WF E1 FL DMIN GAMF
S10K-SDWCR/L07 DCMT0702 10 9.5 4.5 125 17 12° CS25060 FT-7
S12M-SDWCR/L07 DCMT0702 12 10.5 4.5 150 19 10° CS25060 FT-7
S16Q-SDWCR/L07 DCMT0702 16 12.5 4.5 180 23 CS25060 FT-7
S20R-SDWCR/L07 DCMT0702 20 14.5 4.5 200 27 CS35095 FT-7
S16Q-SDWCR/L11 DCMT11T3 16 12.5 4.5 180 23 CS35095 FT-15
S20R-SDWCR/L11 DCMT11T3 20 14.5 4.5 200 27 CS35095 FT-15
S20T-SDWCR/L11 DCMT11T3 20 14.5 4.5 300 27 CS35095 FT-15
S25R-SDWCR/L11 DCMT11T3 25 17 4.5 200 32 CS35095 FT-15
S32S-SDWCR/L11 DCMT11T3 32 20 4 250 40 CS35095 FT-15
