Products

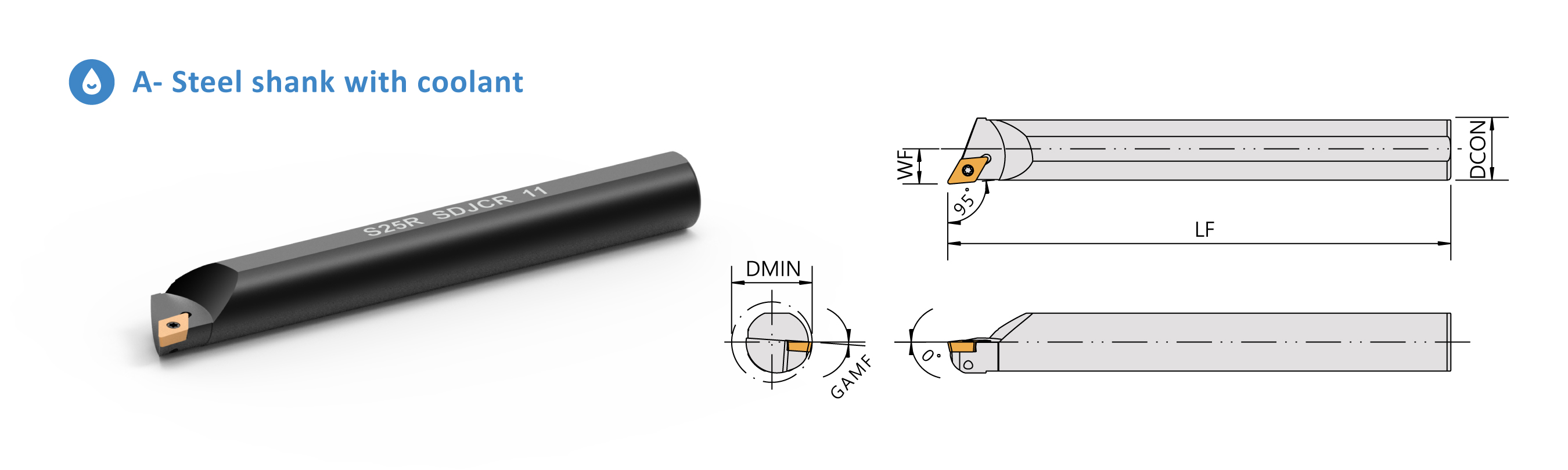

Boring Bars S-SDJC 95°

Please click the picture to enlarge.

Specification

Order No.InsertDimensionsPartsWrench
Right/Left DCON WF LF DMIN GAMF
S08K-SDJCR/L07 DCMT0702 8 5 125 11 10° CS25050 FT-7
S10M-SDJCR/L07 DCMT0702 10 6 150 13 10° CS25060 FT-7
S12M-SDJCR/L07 DCMT0702 12 7 150 19 10° CS25060 FT-7
S16Q-SDJCR/L07 DCMT0702 16 9.5 180 23 CS25060 FT-7
S16Q-SDJCR/L11 DCMT11T3 16 9.5 180 23 CS35095 FT-15
S20R-SDJCR/L11 DCMT11T3 20 11.5 200 27 CS35095 FT-15
S25R-SDJCR/L11 DCMT11T3 25 14 200 32 CS35095 FT-15
S32S-SDJCR/L11 DCMT11T3 32 17.5 250 40 CS35095 FT-15
