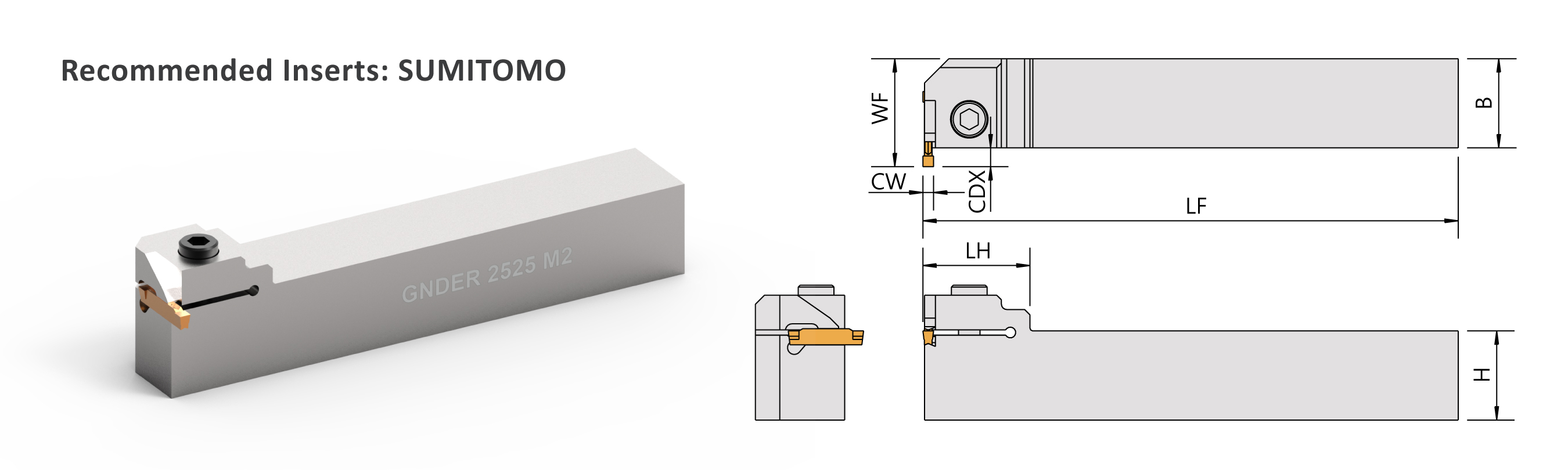

Grooving Holder GNDER/GNDXER

Please click the picture to enlarge.

Specification

▼Recommended Inserts:SUMITOMO

Oder No.InsertDimensions(mm)PartsWrench
Right/Left H B LF WF LH CW ar CDX parts-15 wrench-01
GNDER2525M2 GCMN20 25 25 150 30.5 30 2 30~ 5 CSH0620 LW040
GNDER2525M3 GCMN30 25 25 150 30.5 30 3 30~ 5
GNDER2525M4 GCMN40 25 25 150 30.5 30 4 35~ 5
GNDXER2525M15 GXMN15 25 25 150 29 23 1.5 25~ 3.5
GNDXER2525M2 GXMN20 25 25 150 31 23 2 30~ 5.5
