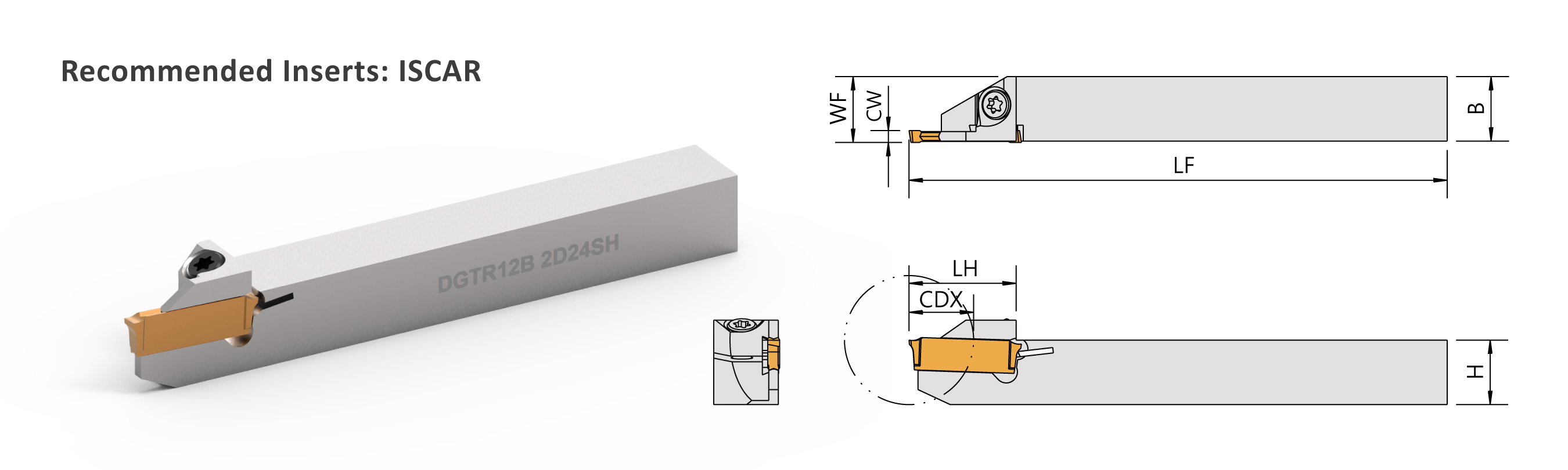

▼Recommended Inserts：ISCAR
| Oder No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
H | B | LF | WF | LH | CW | CDX |  |
 |
| DGTR/L12B-1.4D24SH | DGN14 | 12 | 12 | 120 | 12.2 | 19 | 1.4 | 12 | CS35117S | FT-15 |
| DGTR/L12B-1.5D24SH | DGN15 | 12 | 12 | 120 | 12.2 | 19 | 1.5 | 12 | CS35117S | FT-15 |
| DGTR/L12B-2D24SH | DGN20 | 12 | 12 | 120 | 12.2 | 19 | 2 | 12 | CS35117S | FT-15 |
| DGTR/L1612B-2D24SH | DGN20 | 16 | 12 | 120 | 12.2 | 19 | 2 | 12 | CS35117S | FT-15 |
| DGTR/L16B-2D25SH | DGN20 | 16 | 16 | 120 | 16.2 | 19.5 | 2 | 12.5 | CS35117S | FT-15 |
| DGTR/L16B-3D25SH | DGN30 | 16 | 16 | 120 | 16.3 | 19.5 | 3 | 12.5 | CS35117S | FT-15 |
| DGTR/L20B-3D25SH | DGN30 | 20 | 20 | 120 | 20.3 | 19.5 | 3 | 12.5 | CS35117S | FT-15 |
| DGTR/L16B-3D34 | DGN30 | 16 | 16 | 140 | 16.3 | 30 | 3 | 17 | CSH0520 | LW040 |
| DGTR/L20B-3D40 | DGN30 | 20 | 20 | 140 | 20.3 | 36 | 3 | 20 | CSH0520 | LW040 |
