GROOVING HOLDER GHDR-KO

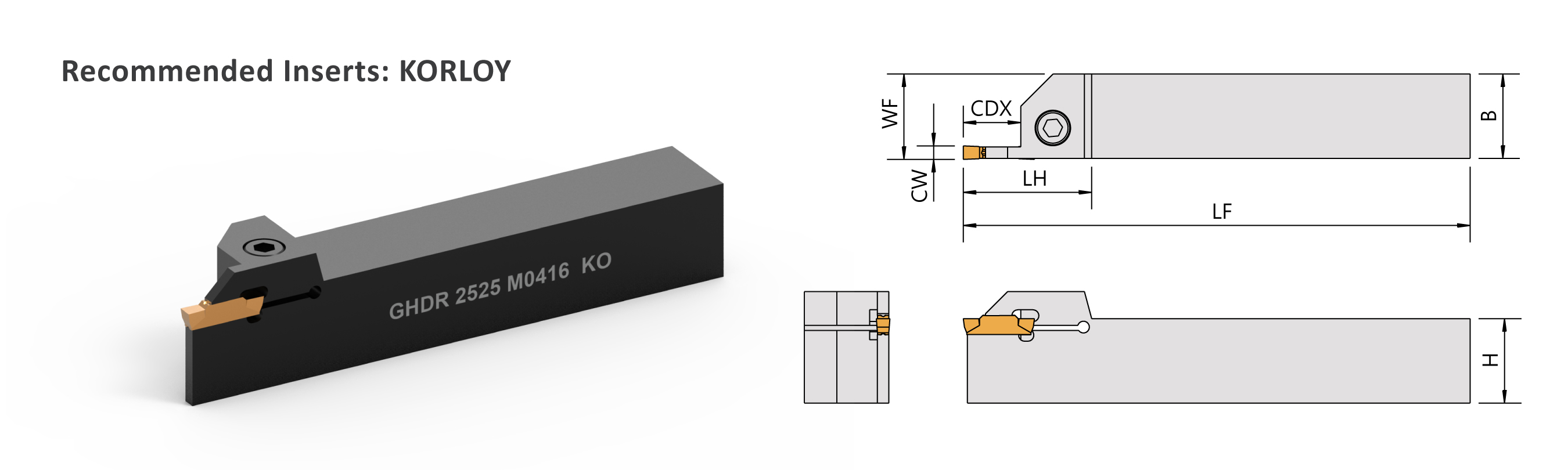

Please click the picture to enlarge.

Specification

▼Recommended Inserts:KORLOY

Oder No.InsertDimensions(mm)PartsWrench
Right / Left insert H B LF WF LH CW CDX parts-15 wrench-01
GHDR-1616H02-10 KO MGMN200 16 16 100 16.15 32 2 10 CSH0514 LW040
GHDR-2020K02-14 KO MGMN200
MGMR200
20 20 125 20.3 32 2 14 CSH0616 LW050
GHDR-2525M02-14 KO MGMN200
MGMR200
25 25 150 25.2 30 2 14 CSH0620 LW050
GHDR-2525M02-20 KO MGMN200
MGMR200
25 25 150 25.3 35 2 20 CSH0620 LW050
GHDR-1616H03-16 KO MGMN300
MGGN300
MRMN300
MGMR300
16 16 100 16.3 32 3 16 CSH0514 LW040
GHDR-2020K03-10 KO MGMN300
MGGN300
MRMN300
MGMR300
20 20 125 20.3 30 3 10 CSH0616 LW050
GHDR-2020K03-20 KO MGMN300
MGGN300
MRMN300
MGMR300
20 20 125 20.3 32 3 20 CSH0616 LW050
GHDR-2525M03-10 KO MGMN300
MGGN300
MRMN300
MGMR300
25 25 150 25.3 35 3 10 CSH0620 LW050
GHDR-2525M03-16 KO MGMN300
MGGN300
MRMN300
MGMR300
25 25 150 25.3 35 3 16 CSH0620 LW050
GHDR-2525M03-20 KO MGMN300
MGGN300
MRMN300
MGMR300
25 25 150 25.3 35 3 20 CSH0620 LW050
GHDR-2020K04-20 KO MGMN400
MGGN400
MRMN400
MGMR400
20 20 125 20.3 38 4 20 CSH0616 LW050
GHDR-2525M04-10 KO MGMN400
MGGN400
MRMN400
MGMR400
25 25 150 25.3 30 4 10 CSH0620 LW050
GHDR-2525M04-16 KO MGMN400
MGGN400
MRMN400
MGMR400
25 25 150 25.3 38 4 16 CSH0620 LW050
GHDR-2525M04-20 KO MGMN400
MGGN400
MRMN400
MGMR400
25 25 150 25.3 38 4 20 CSH0620 LW050
GHDR-2525M05-16 KO MGMN500
MGGN500
MRMN500
MGMR500
25 25 150 25.3 38.7 5 16 CSH0620 LW050
GHDR-2525M05-20 KO MGMN500
MGGN500
MRMN500
MGMR500
25 25 150 25.3 38.7 5 20 CSH0620 LW050
