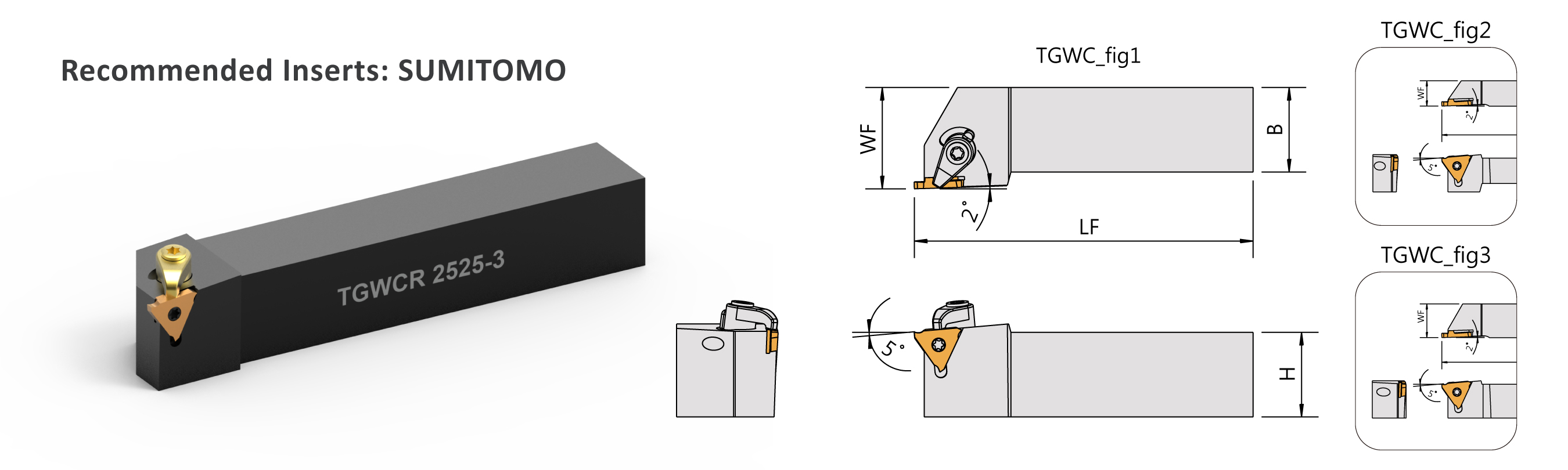

▼Recommended Inserts：SUMITOMO/ACC
| Oder No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
H | B | LF | WF | Fig | Insert screw | Insert wrench | Clamp | Clamp screw | Washer | Clamp wrench |
| TGWCR1010-3 | TGAR3/T*R16 | 10 | 10 | 125 | 10 | 2 | CS40090 | TL-15 | - | - | - | - |
| TGWCR1212-3 | TGAR3/T*R16 | 12 | 12 | 125 | 12 | 2 | CS40090 | TL-15 | - | - | - | - |
| TGWCR1616-3 | TGAR3/T*R16 | 16 | 16 | 125 | 16 | 3 | CS40090 | TL-15 | - | - | - | - |
| TGWCR2020-3 | TGAR3/T*R16 | 20 | 20 | 125 | 25 | 1 | CS40090 | TL-15 | CP50-23 | CSE5021 | ER04 | LW030 |
| TGWCR2525-3 | TGAR3/T*R16 | 25 | 25 | 150 | 30 | 1 | CS40090 | TL-15 | CP50-23 | CSE5021 | ER04 | LW030 |
| TGWCR2020-15 | TGAR4 T*R22 (W1~1.45) |
20 | 20 | 125 | 25 | 1 | CS50120 | TL-20 | CP50-23 | CSE5021 | ER04 | LW030 |
| TGWCR2525-15 | TGAR4 T*R22 (W1~1.45) |
25 | 25 | 150 | 30 | 1 | TL-20 | CP50-23 | CSE5021 | ER04 | LW030 | |
| TGWCR2020-25 | TGAR4 T*R22 (W1.5~2.3) |
20 | 20 | 125 | 25 | 1 | CS50120 | TL-20 | CP50-23 | CSE5021 | ER04 | LW030 |
| TGWCR2525-25 | TGAR4 T*R22 (W1.5~2.3) |
25 | 25 | 150 | 30 | 1 | TL-20 | CP50-23 | CSE5021 | ER04 | LW030 | |
| TGWCR2020-35 | TGAR4 T*R224 (W2.5~4.8) |
20 | 20 | 125 | 25 | 1 | CS50120 | TL-20 | CP50-23 | CSE5021 | ER04 | LW030 |
| TGWCR2525-35 | TGAR4 T*R224 (W2.5~4.8) |
25 | 25 | 150 | 30 | 1 | TL-20 | CP50-23 | CSE5021 | ER04 | LW030 | |
