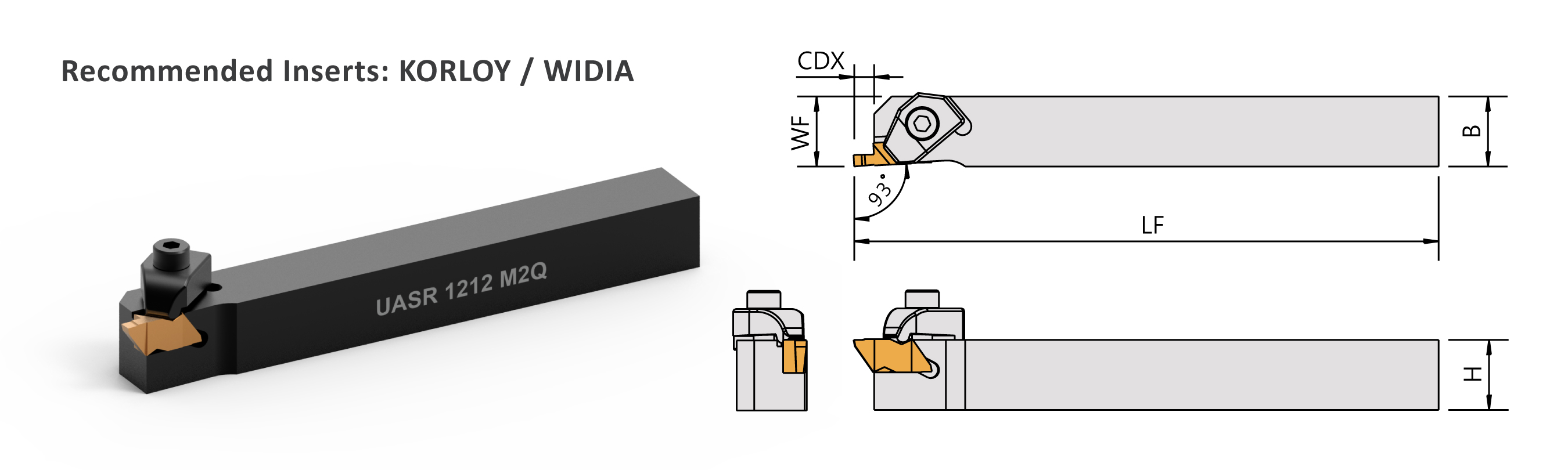

▼Recommended Inserts：KENNAMETAL/WIDIA/ACC
| Oder No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
H | B | LF | WF | CDX | Clamp |  |
 |
|
| R | L | |||||||||
| UASR/L-1010M2Q | N**R/L2 /NG2M | 10 | 10 | 150 | 10 | 3.5 | CPK3A | CPK4A | CSH3512 | LW025 |
| UASR/L-1212M2Q | 12 | 12 | 150 | 12 | 3.5 | |||||
| UASR/L-1616K2Q | 16 | 16 | 125 | 16 | 3.9 | |||||
| UASR/L-1616K3Q | N**R/L3 /NG3M | 16 | 16 | 125 | 16 | 5.3 | CPK1 | CPK2 | CSH0516 | LW040 |
