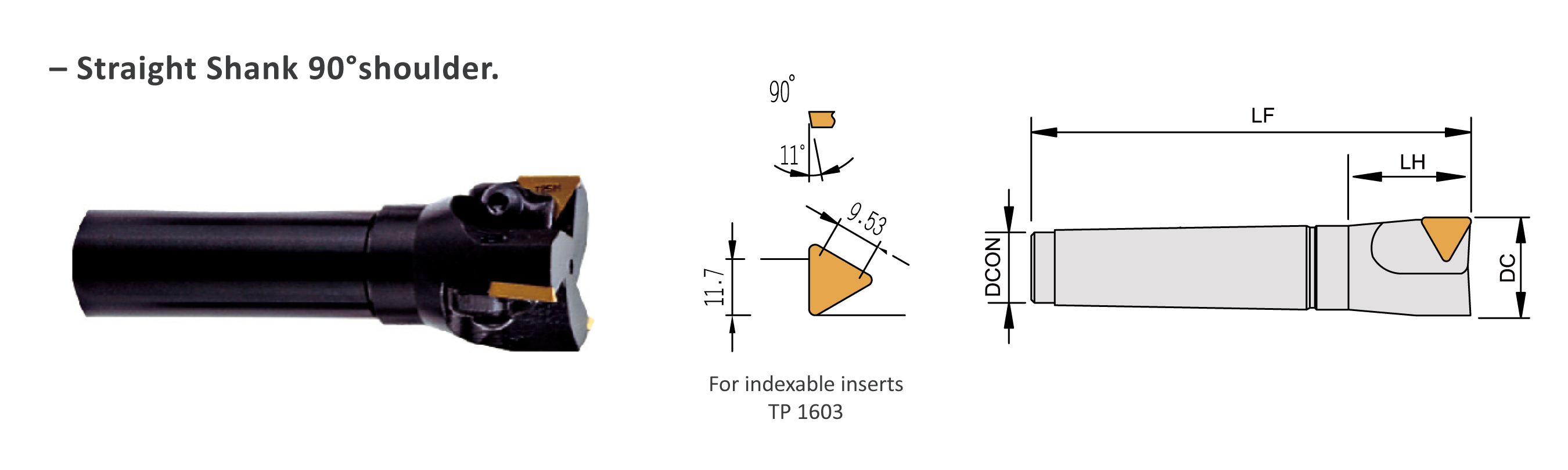

End Mills ME##T(TP1603)

Please click the picture to enlarge.

Specification

Order No.	Insert	Dimensions(mm)					Clamp	Screw	Spring	Wrench
Right / Left		DC	LF	LH	DCON	I No.
ME30Tx25	TP**1603	30	114	44	25	2	CP50-3	CSB0617T	SP030	TL-25
ME32Tx25	TP**1603	32	114	44	25	2	CP50-3	CSB0617T	SP030	TL-25
ME32Tx32	TP**1603	32	114	44	32	2	CP50-3	CSB0617T	SP030	TL-25
ME35Tx32	TP**1603	35	114	44	32	2	CP50-3	CSB0617T	SP030	TL-25
ME40Tx32	TP**1603	40	114	44	32	3	CP50-3	CSB0617T	SP030	TL-25
ME45Tx32	TP**1603	45	116	46	32	3	CP50-3	CSB0617T	SP030	TL-25
ME50Tx32	TP**1603	50	116	46	32	3	CP50-3	CSB0617T	SP030	TL-25
