Specification

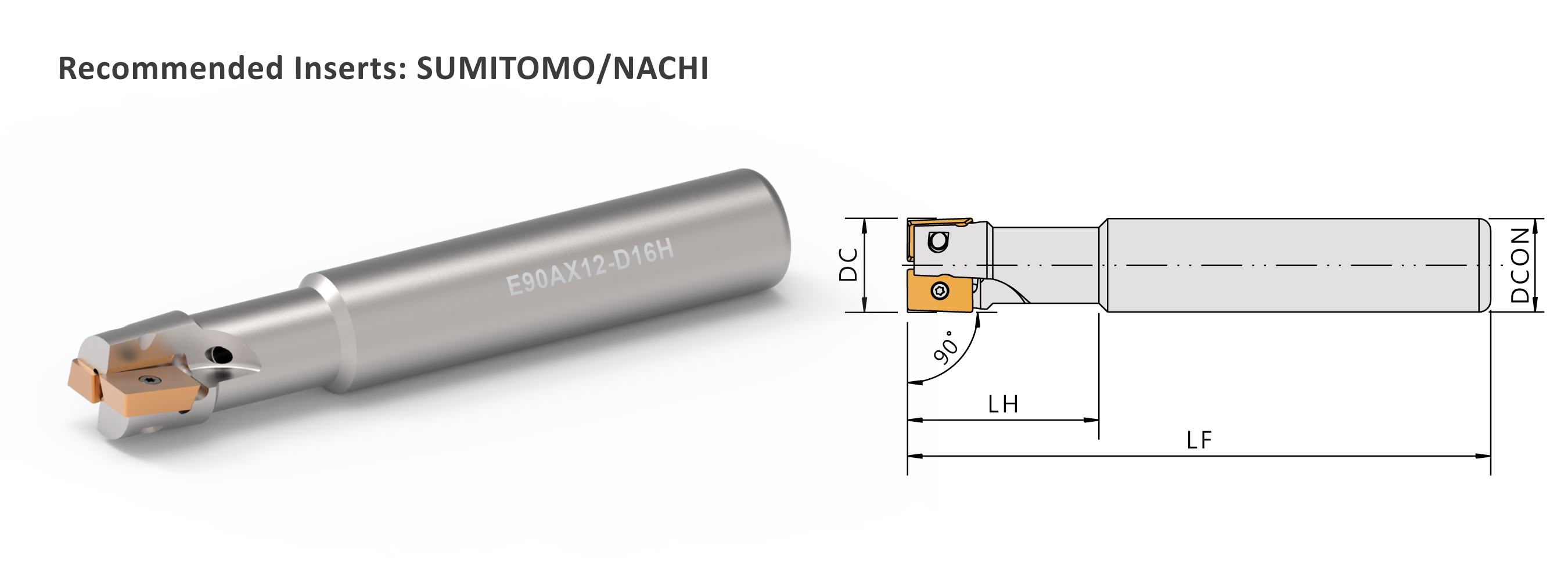

▼Recommended Inserts : SUMITOMO/NACHI

Order No.	Insert	Dimensions(mm)					Screw	Wrench
Right / Left		DC	LF	LH	DCON	I No.
E90AX12-D14H	AXMT1235	14	80	25	16	1	CS30053	DT-8
E90AX12-D16H		16	100	25	16	2		DT-8
E90AX12-D18H		18	110	25	16	2		DT-8
E90AX12-D20H		20	110	50	20	3	CS30063	DT-8
E90AX12-D22H		22	120	40	20	3		DT-8
E90AX12-D25H		25	120	40	25	4		DT-8
E90AX12-D28H		28	120	30	25	4		DT-8
E90AX12-D30H		30	170	50	25	4		DT-8
E90AX12-D32H		32	170	50	32	5		DT-8
E90AX12-D40H		40	170	30	32	6		DT-8

Order No.	Insert	Dimensions(mm)					Screw	Wrench
Right / Left		DC	LF	LH	DCON	I No.
E90AX12-D14LH	AXMT1235	14	120	25	16	1	CS30053	DT-8
E90AX12-D16LH		16	145	25	16	2		DT-8
E90AX12-D18LH		18	145	25	16	2		DT-8
E90AX12-D20LH		20	150	40	20	2	CS30063	DT-8
E90AX12-D20LH-03		20	150	40	20	3		DT-8
E90AX12-D21LH-03		21	150	40	20	3		DT-8
E90AX12-D22LH		22	150	30	20	2		DT-8
E90AX12-D25LH		25	170	50	25	2		DT-8
E90AX12-D25LH-04		25	170	50	25	4		DT-8
E90AX12-D28LH		28	170	30	25	2		DT-8
E90AX12-D30LH		30	170	30	25	2		DT-8
E90AX12-D32LH		32	180	60	32	2		DT-8
E90AX12-D40LH		40	180	30	32	2		DT-8

E90AX12-D16 without cooling channel
E90AX12-D16H with cooling channel
E90AX12-D16LH with longer shank and cooling channel
