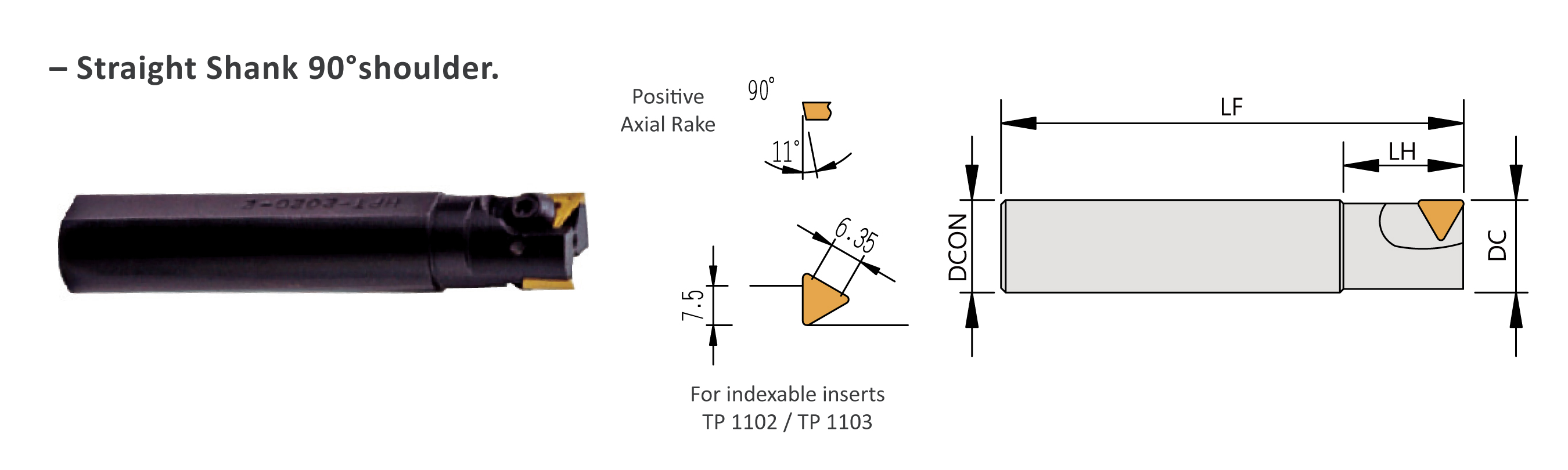

End Mills ME##T(TP1102/TP1103)

Please click the picture to enlarge.

Order No.	Insert	Dimensions(mm)					Clamp	Screw	Wrench
Right / Left		DC	LF	LH	DCON	I No.
ME16T	TP**1102	16	100	26	16	1	CP50-4	CS70-5	LW030
ME18T	TP**1102	18	100	26	16	1	CP50-4	CS70-5	LW030
ME20T	TP**1102	20	100	26	20	2	CP50-4	CS70-5	LW030
ME22T	TP**1102	22	100	26	20	2	CP50-4	CS70-5	LW030
ME25Tx20	TP**1102	25	100	26	20	2	CP50-4	CS70-5	LW030
ME16TxTP1103	TP**1103	16	100	26	16	1	CP50-4	CS70-5	LW030
ME20TxTP1103	TP**1103	20	100	26	20	2	CP50-4	CS70-5	LW030
ME22TxTP1103	TP**1103	22	100	26	20	2	CP50-4	CS70-5	LW030
ME25Tx25xTP1103	TP**1103	25	100	26	25	2	CP50-4	CS70-5	LW030
ME30Tx25xTP1103	TP**1103	30	100	26	25	2	CP50-4	CS70-5	LW030
