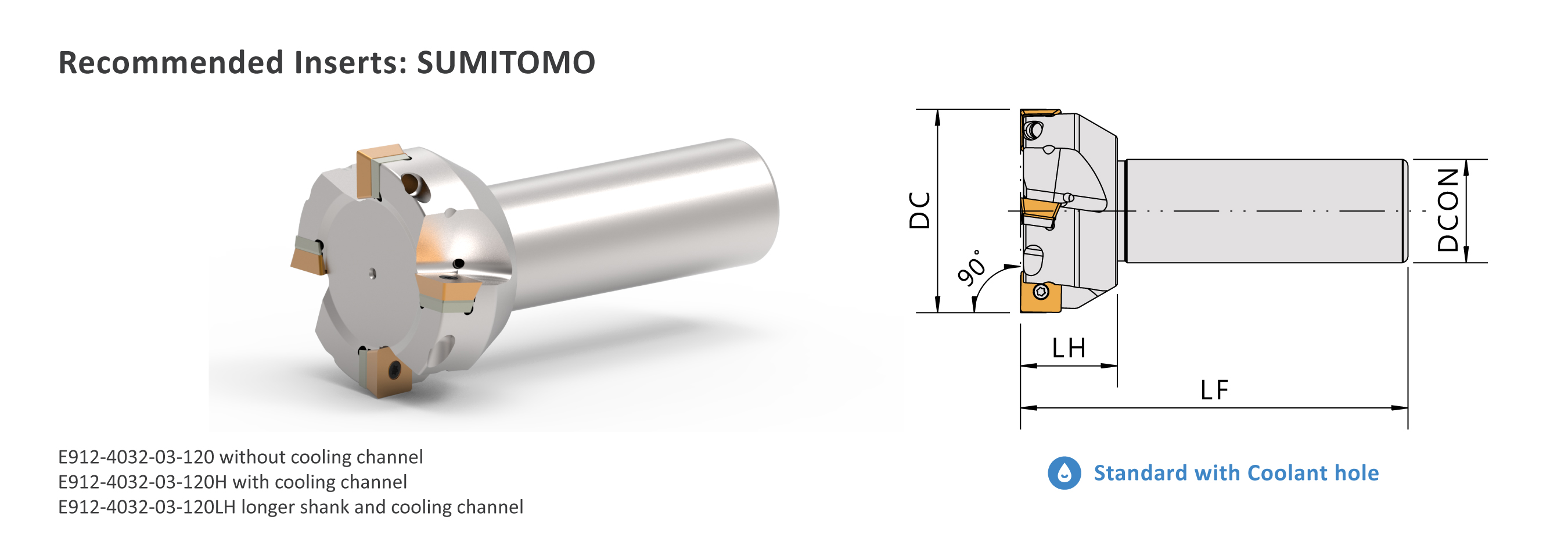

▼Recommended Inserts : SUMITOMO
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | ||||
|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
DC | DCON | LH | LF | I No. |  |
 |
| E912-4032-03-120H | SOMT1204 | 40 | 32 | 30 | 120 | 3 | CS35117S | DBIT-T15 |
| E912-5032-03-120H | 50 | 32 | 30 | 120 | 3 | |||
| E912-5032-04-120H | 50 | 32 | 30 | 120 | 4 | |||
| E912-6332-04-120H | 63 | 32 | 30 | 120 | 4 | |||
| E912-6332-05-120H | 63 | 32 | 30 | 120 | 5 | |||
| E912-8032-04-120H | 80 | 32 | 30 | 120 | 4 | |||
| E912-8032-06-120H | 80 | 32 | 30 | 120 | 6 | |||
E912-4032-03-120 without cooling channel
E912-4032-03-120H with cooling channel
E912-4032-03-120LH with longer shank and cooling channel
