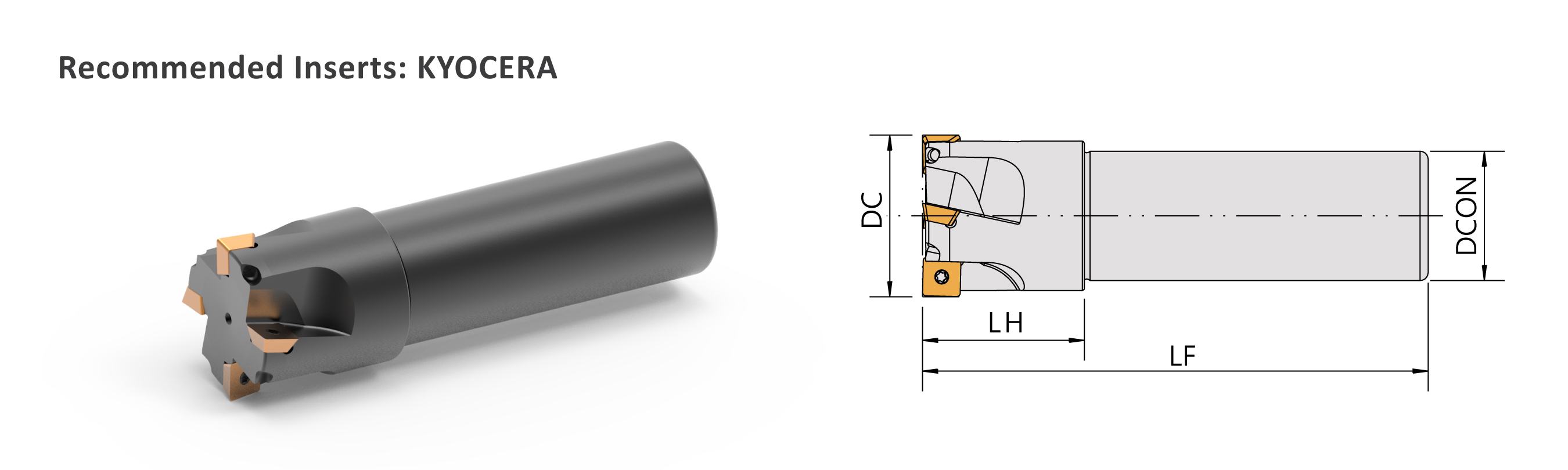

▼Recommended Inserts : KYOCERA
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | ||||
|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
DC | LF | LH | DCON | I No. |  |
 |
| E90SE09-D25JX02 | SEMM09T3 | 25 | 120 | 30 | 25 | 2 | CS30070 | DBIT-T10 |
| E90SE09-D32K03 | SEMM09T3 | 32 | 125 | 35 | 32 | 3 | CS30070 | DBIT-T10 |
| E90SE09-D40K04 | SEMM09T3 | 40 | 125 | 40 | 32 | 4 | CS30070 | DBIT-T10 |
| E90SE09-D50K05 | SEMM09T3 | 50 | 125 | 40 | 32 | 3 | CS30070 | DBIT-T10 |
