Please click the picture to enlarge.

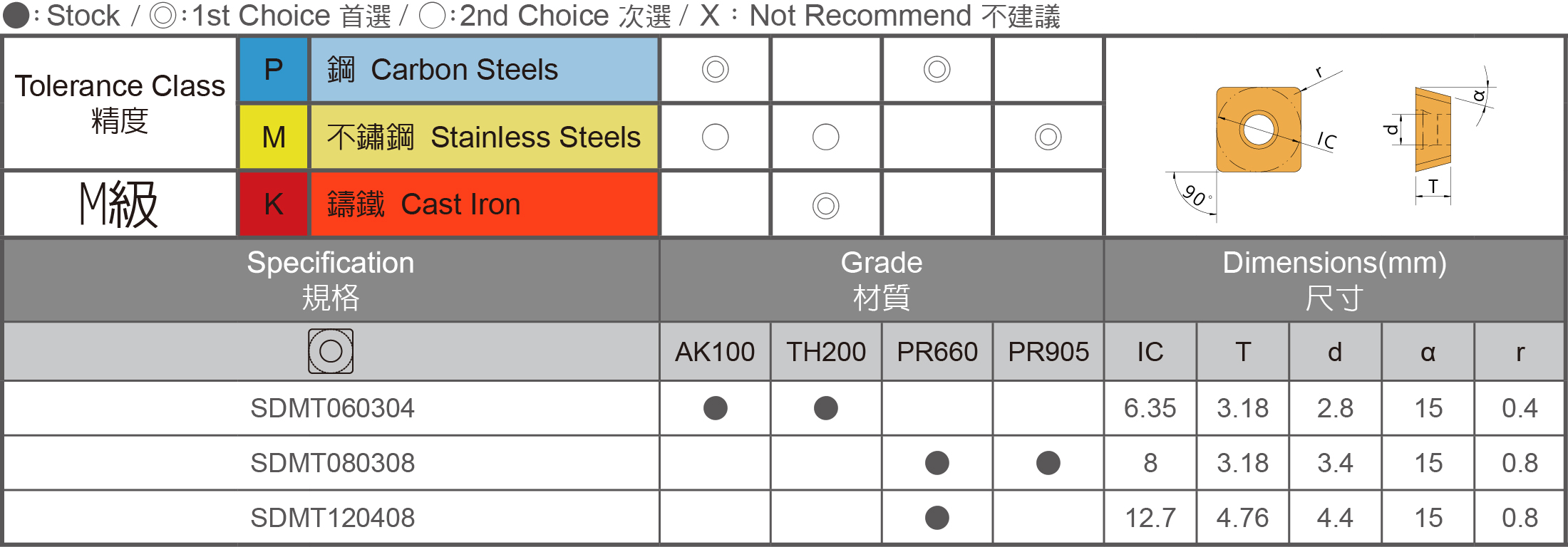

▼Recommended Inserts : KENNAMETAL / KYOCERA / ACC

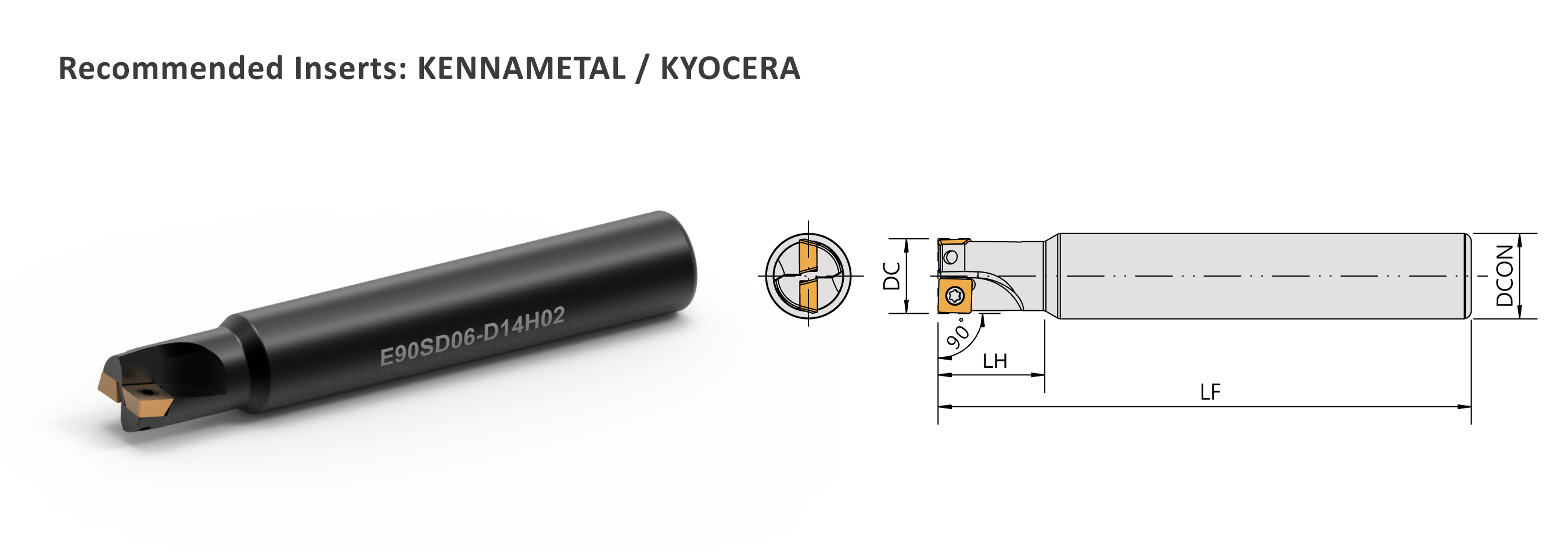

Order No.	Insert	Dimensions(mm)					Screw	Wrench
Right / Left		DC	LF	LH	DCON	I No.
E90SD06-D10H01	SDMT0603	10	100	20	12	1	CS25065/ CS25052S	DT-8
E90SD06-D12H01	SDMT0603	12	100	20	12	1		DT-8
E90SD06-D14H02	SDMT0603	14	100	20	16	2		DT-8
E90SD06-D16H02	SDMT0603	16	100	20	16	2		DT-8
E90SD06-D20K03	SDMT0603	20	125	20	20	3		DT-8
