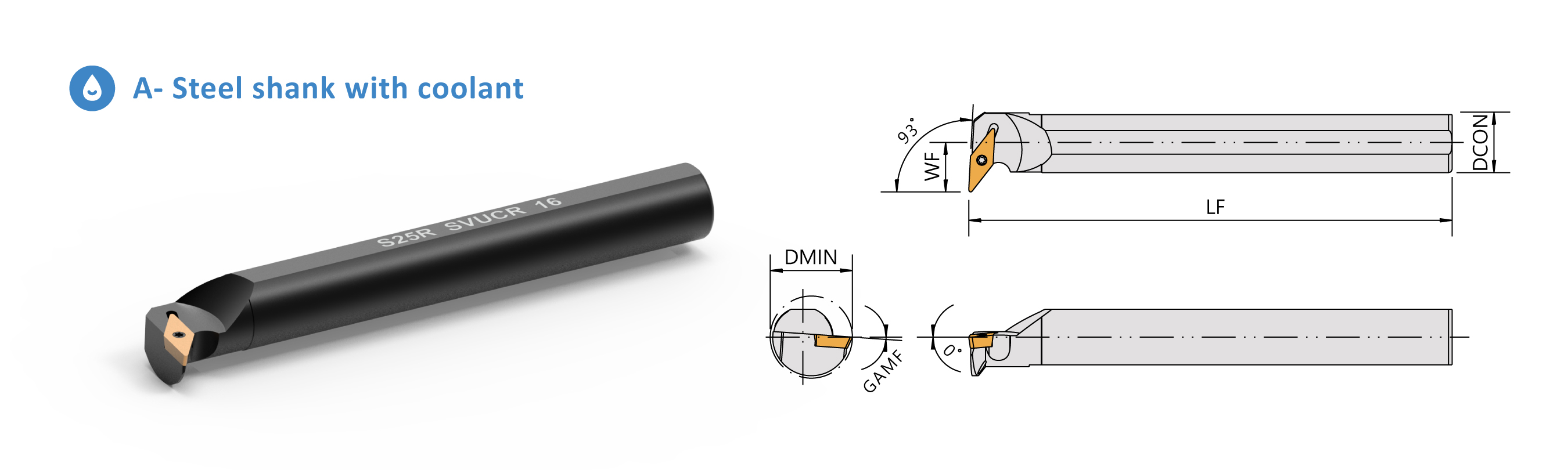

Boring Bars S-SVUC 93°
Please click the picture to enlarge.
Specification
| Order No. | Insert | Dimensions(mm) | Parts | Wrench |
|---|
| Right/Left |
 |
DCON |
WF |
LF |
DMIN |
GAMF |
 |
 |
| S12M-SVUCR/L08 |
VCMT0802 |
12 |
11 |
150 |
22 |
7° |
CS20047 |
FT-7 |
| S16Q-SVUCR/L11 |
VCMT1103 |
16 |
13 |
180 |
22 |
7° |
CS25061S |
FT-7 |
| S20R-SVUCR/L11 |
VCMT1103 |
20 |
15 |
200 |
27 |
6° |
CS25061S |
FT-7 |
| S25R-SVUCR/L11 |
VCMT1103 |
25 |
20.5 |
200 |
33 |
4° |
CS25061S |
FT-7 |
| S20R-SVUCR/L16 |
VCMT1604 |
20 |
19 |
200 |
31 |
8° |
CS35090 |
FT-15 |
| S25R-SVUCR/L16 |
VCMT1604 |
25 |
20.5 |
200 |
33 |
7° |
CS35090 |
FT-15 |
| S32S-SVUCR/L16 |
VCMT1604 |
32 |
22.5 |
250 |
42 |
5° |
CS35090 |
FT-15 |
| S40T-SVUCR/L16 |
VCMT1604 |
40 |
27 |
300 |
51 |
4° |
CS35090 |
FT-15 |
