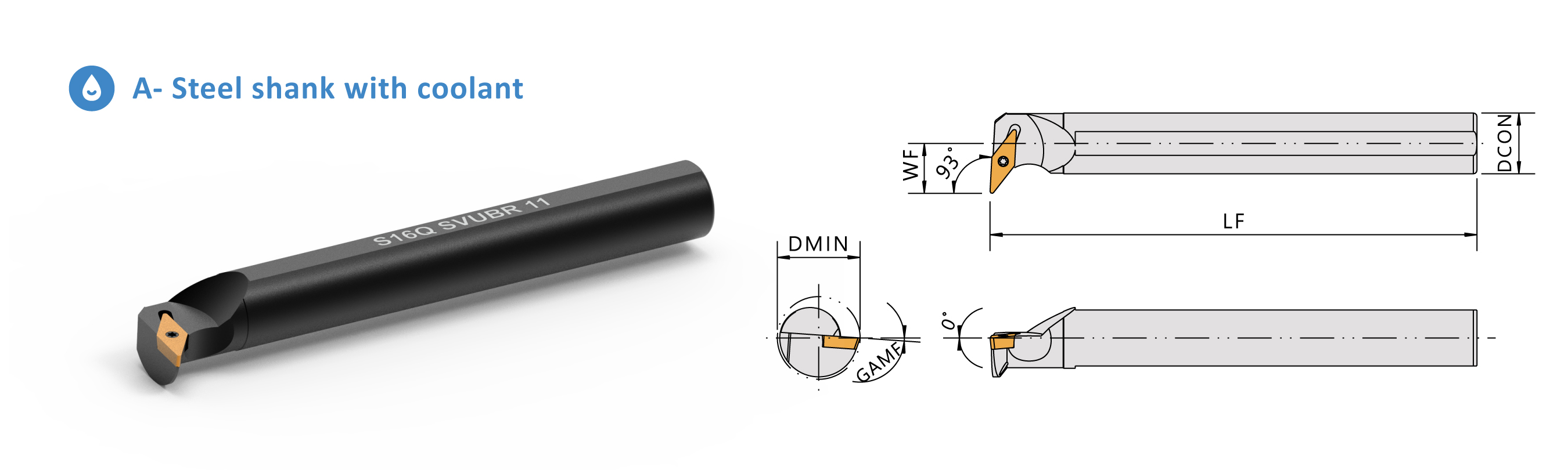

Boring Bars S-SVUB 93°

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left DCON WF LF DMIN GAMF
S16Q-SVUBR/L11 VCMT1103 16 13 180 22 CS25061S FT-7
S20R-SVUBR/L11 VCMT1103 20 15 200 27 CS25061S FT-7
S25R-SVUBR/L11 VCMT1103 25 20.5 200 33 CS25061S FT-7
S20R-SVUBR/L16 VCMT1604 20 19 200 31 CS35090 FT-15
S25R-SVUBR/L16 VCMT1604 25 20.5 200 34 CS35090 FT-15
S32S-SVUBR/L16 VCMT1604 32 22.5 250 42 CS35090 FT-15
S32U-SVUBR/L16 VCMT1604 32 22.5 350 42 CS35090 FT-15
S40V-SVUBR/L16 VCMT1604 40 27 400 51 CS35090 FT-15
S50V-SVUBR/L16 VCMT1604 50 32 400 58 CS35090 FT-15
