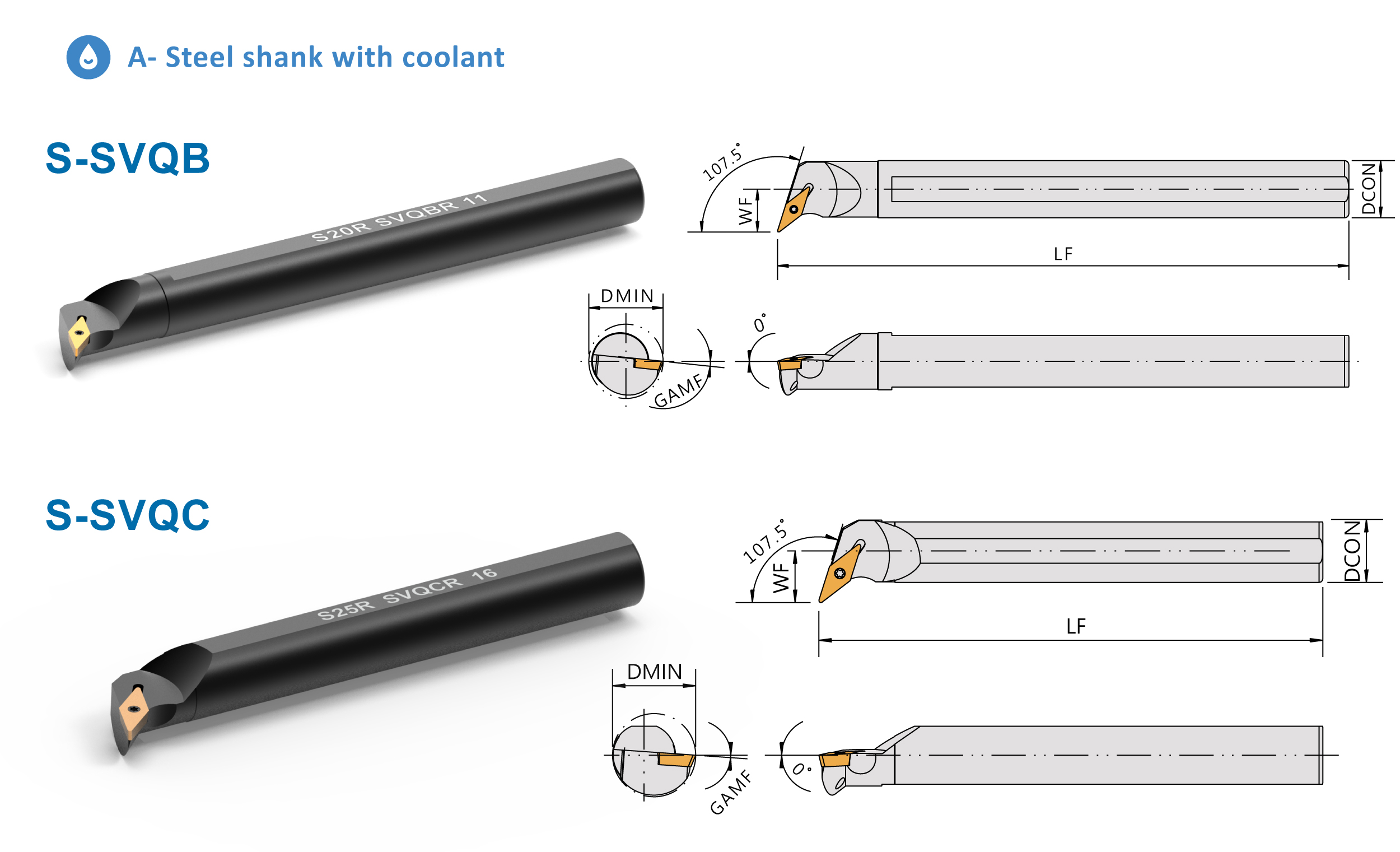

Boring Bars S-SVQB/S-SVQC 107.5°

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left DCON WF LF DMIN GAMF
S12M-SVQBR/L11 VBMT1103 12 11 150 18 CS25055PS FT-7
S16Q-SVQBR/L11 16 13 180 22 CS25055PS FT-7
S20R-SVQBR/L11 20 15 200 26 CS25061S FT-7
S20R-SVQBR/L16 VBMT1604 20 19 200 30 CS35119S FT-15
S25R-SVQBR/L16 25 20.5 200 34 CS35119S FT-15
S32S-SVQBR/L16 32 22.5 250 40 CS35119S FT-15
S40V-SVQBR/L16 40 27 400 48 CS35119S FT-15
Order No.InsertDimensions(mm)PartsWrench
Right/Left DCON WF LF DMIN GAMF
S12M-SVQCR/L11 VCMT1103 12 11 150 18 10° CS25061S FT-7
S16Q-SVQCR/L11 16 13 180 22 CS25061S FT-7
S20R-SVQCR/L11 20 15 200 27 CS25061S FT-7
S20R-SVQCR/L16 VCMT1604 20 19 200 30 CS35090 FT-15
S25R-SVQCR/L16 25 20.5 200 34 CS35090 FT-15
S32S-SVQCR/L16 32 22.5 250 41 CS35090 FT-15
S40T-SVQCR/L16 40 27 300 50 CS35090 FT-15
