Boring Bars S-SVJC 93°

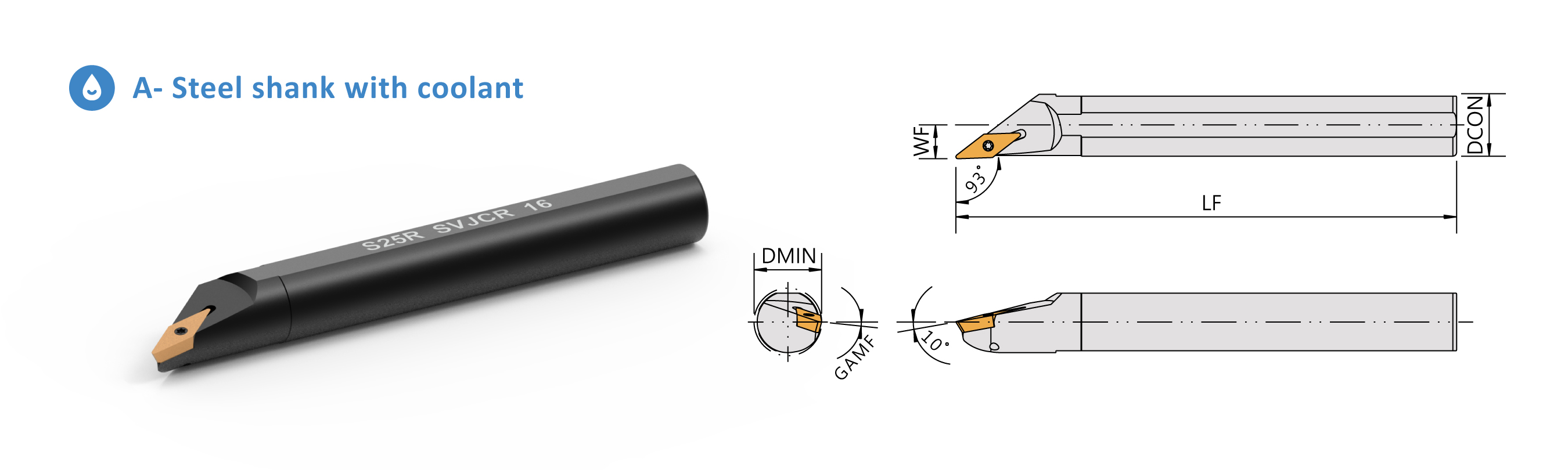

Please click the picture to enlarge.
Specification
Order No. | Insert | Dimensions(mm) | Parts | Wrench |
Right/Left |
|
DCON |
WF |
LF |
DMIN |
GAMF |
|
|
S08K-SVJCR08 |
VCMT0802 |
8 |
5 |
125 |
10 |
7° |
CS20047 |
FT-6 |
S10K-SVJCR08 |
10 |
6 |
125 |
12 |
7° |
S10K-SVJCR/L11 |
VCMT1103 |
10 |
6 |
125 |
12 |
10° |
CS25061S |
FT-7 |
S12M-SVJCR/L11 |
12 |
7 |
150 |
14 |
7° |
S16Q-SVJCR/L11 |
16 |
9 |
180 |
18 |
7° |
S16Q-SVJCR/L16 |
VCMT1604 |
16 |
9 |
180 |
18 |
7° |
CS35090 |
FT-15 |
S20R-SVJCR/L16 |
VCMT1604 |
20 |
10.5 |
200 |
21 |
6° |
CS35090 |
FT-15 |
S25R-SVJCR/L16 |
VCMT1604 |
25 |
13.5 |
200 |
27 |
6° |
CS35090 |
FT-15 |
S32S-SVJCR/L16 |
VCMT1604 |
32 |
17 |
250 |
34 |
4° |
CS35090 |
FT-15 |
S40T-SVJCR/L16 |
VCMT1604 |
40 |
22 |
300 |
44 |
4° |
CS35090 |
FT-15 |
