Boring Bars S-STWB/S-STWC 60°

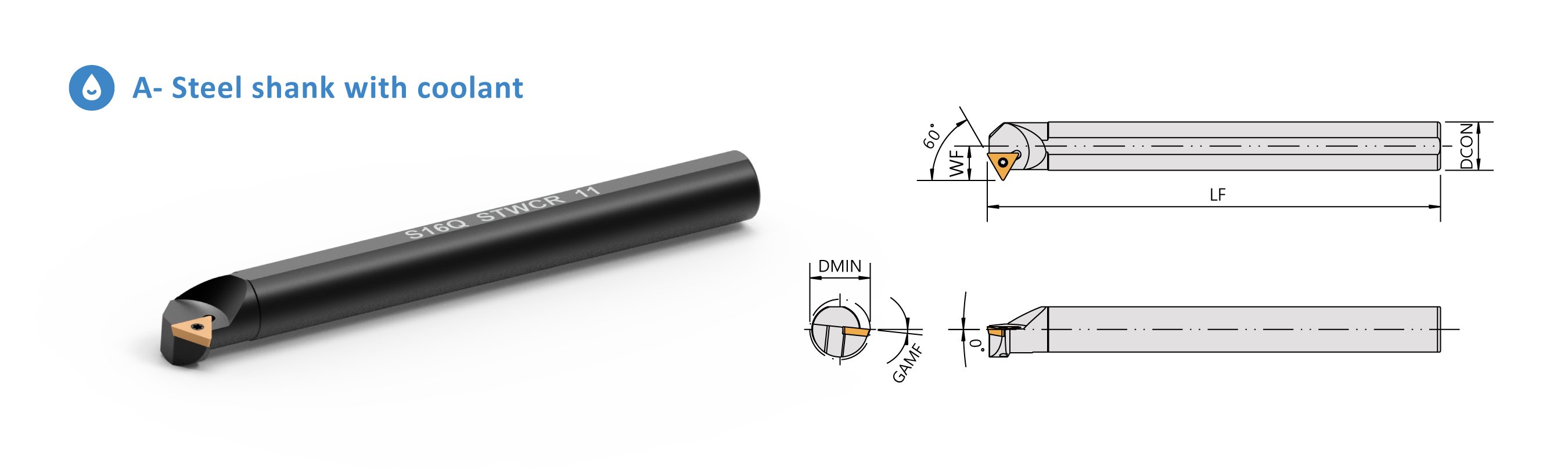

Please click the picture to enlarge.
Specification
| Order No. | Insert | Dimensions(mm) | Parts | Wrench |
|---|
| Right/Left |
 |
DCON |
WF |
LF |
DMIN |
GAMF |
 |
 |
| S08H-STWBR06 |
TBMT0601 |
8 |
6 |
100 |
11 |
13° |
CS20038 |
FT-6 |
| S08H-STWCR/L09 |
TCMT0902 |
8 |
6 |
100 |
10 |
13° |
CS22050 |
FT-7 |
| S10K-STWCR/L09 |
TCMT0902 |
10 |
7 |
125 |
13 |
8° |
CS22050 |
FT-7 |
| S10K-STWCR/L11 |
TCMT1102 |
10 |
7 |
125 |
13 |
8° |
CS25061S |
FT-7 |
| S12M-STWCR/L11 |
TCMT1102 |
12 |
9 |
150 |
16 |
8° |
CS25061S |
FT-7 |
| S16Q-STWCR/L11 |
TCMT1102 |
16 |
11 |
180 |
20 |
6° |
CS25061S |
FT-7 |
| S20R-STWCR/L11 |
TCMT1102 |
20 |
13 |
200 |
25 |
4° |
CS25061S |
FT-7 |
| S25R-STWCR/L11 |
TCMT1102 |
25 |
15 |
200 |
31 |
6° |
CS25061S |
FT-7 |
| S20R-STWCR/L16 |
TCMT16T3 |
20 |
14.5 |
200 |
25 |
2° |
CS35090 |
FT-15 |
| S25R-STWCR/L16 |
TCMT16T3 |
25 |
17 |
200 |
32 |
6° |
CS35090 |
FT-15 |
| S32S-STWCR/L16 |
TCMT16T3 |
32 |
20.5 |
250 |
39 |
4° |
CS35090 |
FT-15 |
| S40T-STWCR/L16 |
TCMT16T3 |
40 |
24 |
300 |
50 |
0° |
CS35090 |
FT-15 |
