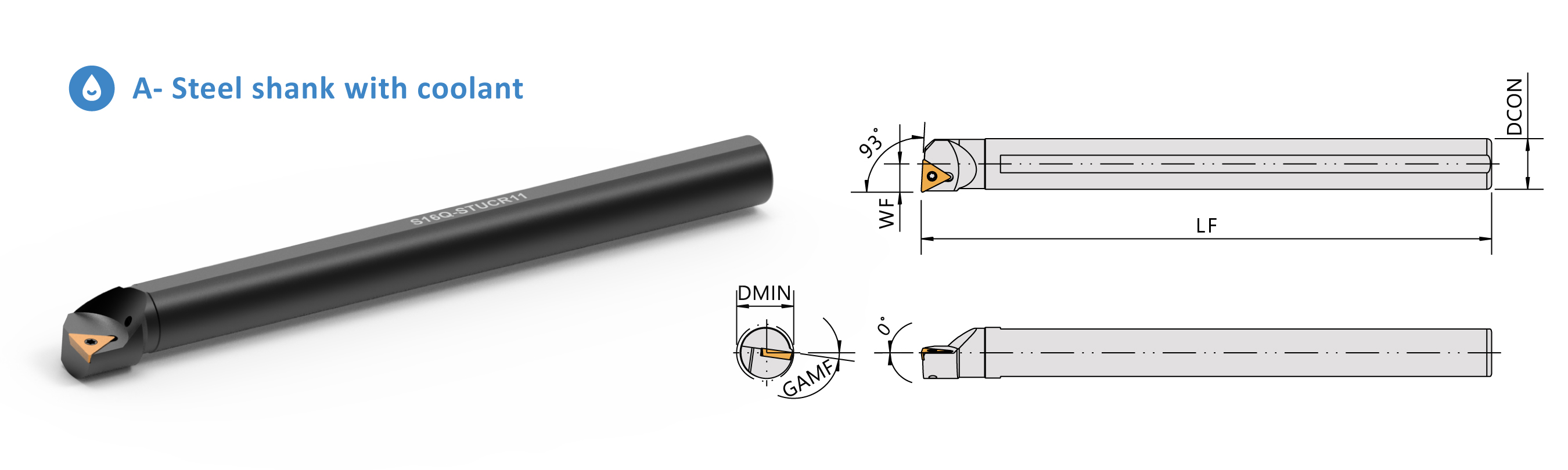

A- Steel shank with coolant 亦可做中心出水鋼柄
| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||
|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
DCON | WF | LF | DMIN | GAMF |  |
 |
|
| S08K-STUCR/L09-10 | TCMT0902 | 8 | 5 | 125 | 10 | 15° | CS22050 | FT-7 | |
| S10K-STUCR09-12 | TCMT0902 | 10 | 6 | 125 | 12 | 13° | CS22050 | FT-7 | |
| S10K-STUCR11 | TCMT1102 | 10 | 7 | 125 | 14 | 12° | CS25061S | FT-7 | |
| S10K-STUCR11-12 | TCMT1102 | 10 | 6 | 125 | 12 | 12° | CS25061S | FT-7 | |
| S12M-STUCR11-14 | TCMT1102 | 12 | 7 | 150 | 14 | 10° | CS25061S | FT-7 | |
| S16Q-STUCR11 | TCMT1102 | 16 | 11 | 180 | 18 | 8° | CS25061S | FT-7 | |
| S16Q-STUCR11-18 | TCMT1102 | 16 | 9 | 180 | 18 | 8° | CS25061S | FT-7 | |
| S20R-STUCR11-22 | TCMT1102 | 20 | 11 | 200 | 22 | 6° | CS25061S | FT-7 | |
| S25R-STUCR1102-28 | TCMT1102 | 25 | 14 | 200 | 28 | 6° | CS25061S | FT-7 | |
| S32S-STUCR1102 | TCMT1102 | 32 | 22 | 250 | 39 | 4° | CS25061S | FT-7 | |
| S20R-STUCR16 | TCMT16T3 | 20 | 13 | 200 | 25 | 6° | CS35090 | FT-15 | |
| S20R-STUCR16-22 | TCMT16T3 | 20 | 11 | 200 | 22 | 6° | CS35090 | FT-15 | |
| S25R-STUCR16 | TCMT16T3 | 25 | 17 | 200 | 32 | 6° | CS35090 | FT-15 | |
| S25R-STUCR16-28 | TCMT16T3 | 25 | 14 | 200 | 28 | 6° | CS35090 | FT-15 | |
| S32S-STUCR16 | TCMT16T3 | 32 | 22 | 250 | 39 | 4° | CS35090 | FT-15 | |
