Boring Bars S-SSSC 45°

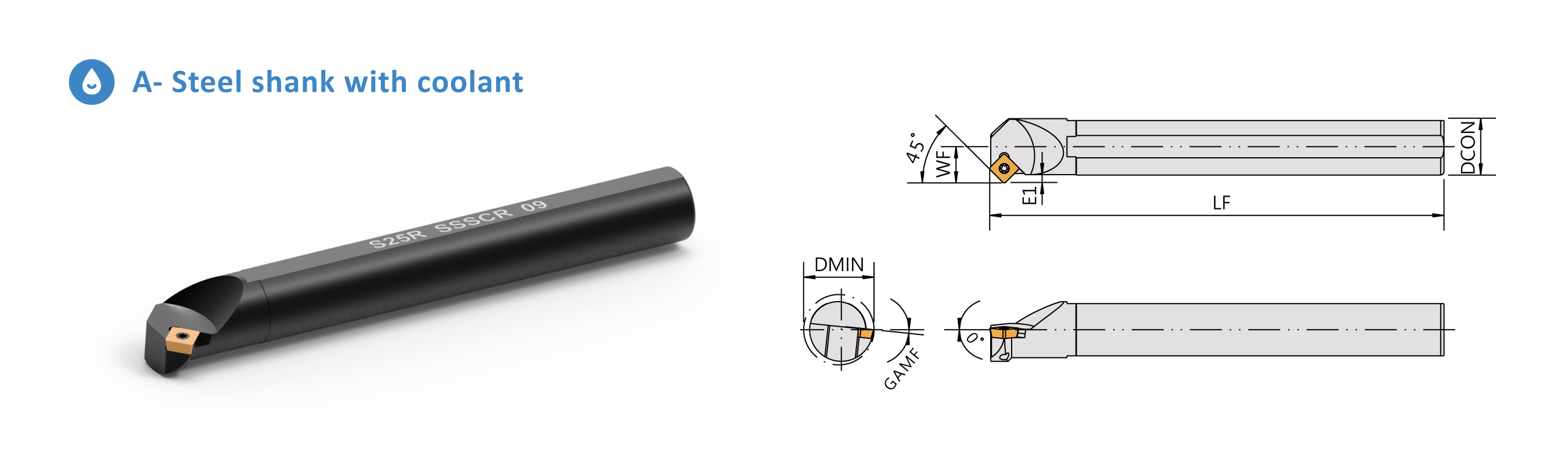

Please click the picture to enlarge.

Specification

Order No.InsertDimensionsPartsWrench
Right/Left DCON WF E1 LF DMIN GAMF
S12M-SSSCR/L09 SCMT09T3 12 8.5 2.5 150 16 12° CS40090 FT-15
S16Q-SSSCR/L09 SCMT09T3 16 11.5 3.5 180 20 10° CS40090 FT-15
S20R-SSSCR/L09 SCMT09T3 20 13.5 3.5 200 26 CS40090 FT-15
S25R-SSSCR/L09 SCMT09T3 25 16 3.5 200 31 CS40090 FT-15
