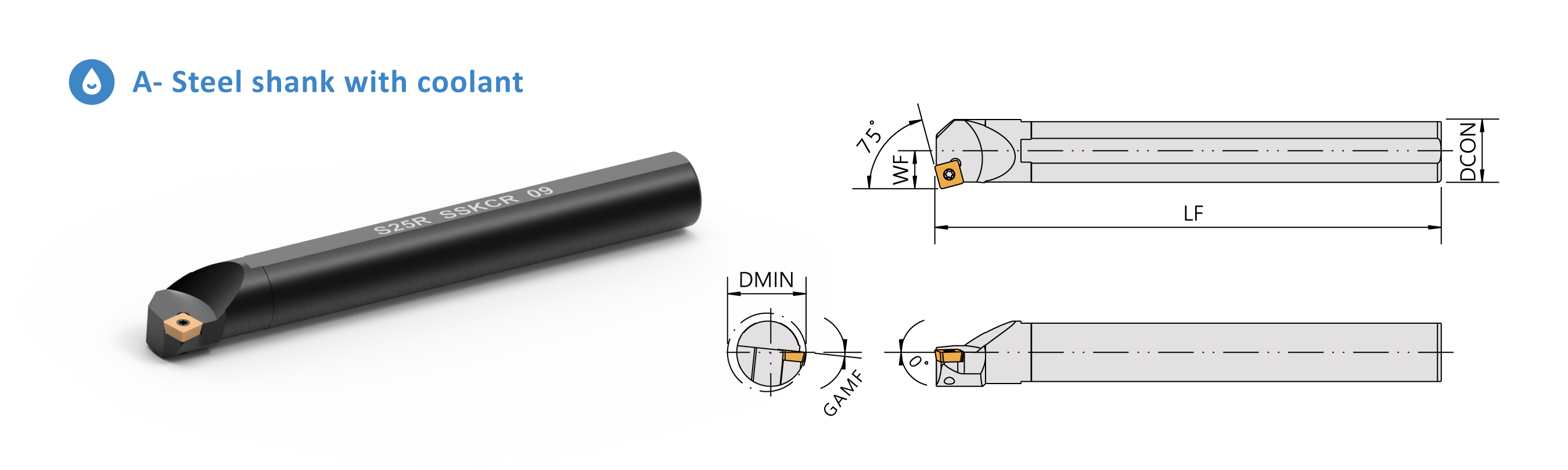

Boring Bars S-SSKC 75°

Please click the picture to enlarge.

Specification

Order No.InsertDimensionsPartsWrench
Right/Left DCON WF LF DMIN GAMF
S12M-SSKCR/L09 SCMT09T3 12 8.5 150 16 12° CS40090 FT-15
S16Q-SSKCR/L09 SCMT09T3 16 11 180 20 11° CS40090 FT-15
S20R-SSKCR/L09 SCMT09T3 20 13 200 25 CS40090 FT-15
S25R-SSKCR/L09 SCMT09T3 25 15 200 31 CS40090 FT-15
S25R-SSKCR/L12 SCMT1204 25 17 200 32 CS40015 FT-15
S32S-SSKCR/L12 SCMT1204 32 22 250 40 CS40015 FT-15
