C-Carbide Shank 鎢鋼柄
E-Carbide Shank with Coolant 油孔鎢鋼柄

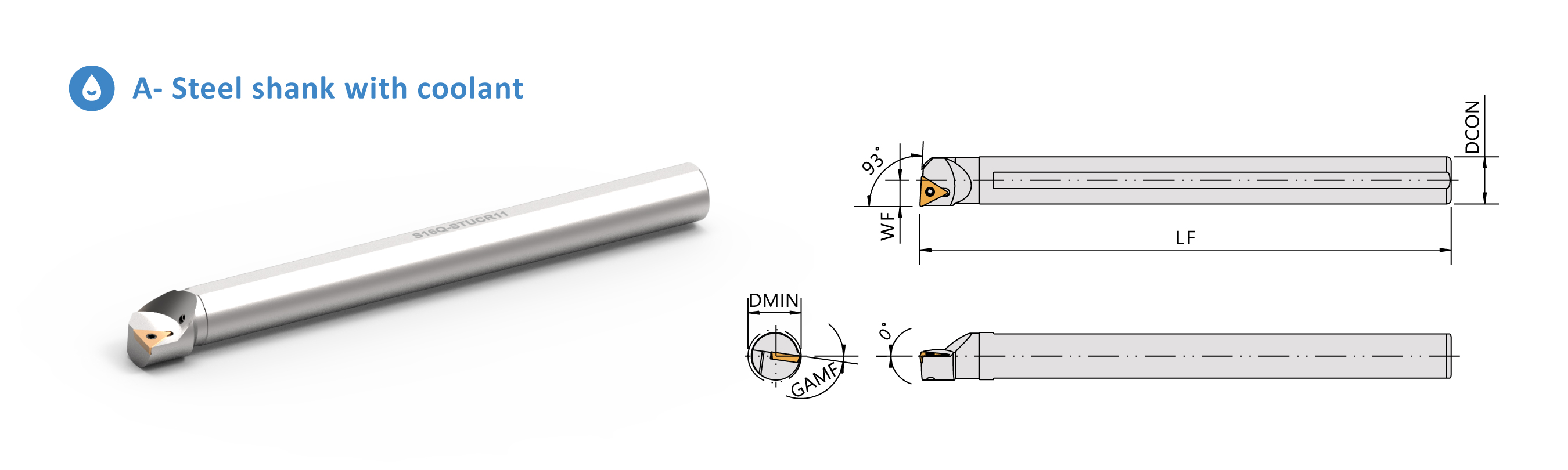

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||
|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
DCON | WF | LF | DMIN | GAMF |  |
 |
|
| C08K-STUCR09-10 | TCMT0902 | 8 | 5 | 125 | 10 | 15° | CS22050 | FT-7 | |
| C10M-STUCR09-12 | TCMT0902 | 10 | 6 | 150 | 12 | 13° | CS22050 | FT-7 | |
| C10M-STUCR11-12 | TCMT1102 | 10 | 6 | 150 | 12 | 13° | CS25061S | FT-7 | |
| C12Q-STUCR11-14 | TCMT1102 | 12 | 7 | 180 | 18 | 8° | CS25061S | FT-7 | |
| C16Q-STUCR11-18 | TCMT1102 | 16 | 9 | 180 | 18 | 8° | CS25061S | FT-7 | |
| C16R-STUCR11-18 | TCMT1102 | 16 | 9 | 200 | 18 | 8° | CS25061S | FT-7 | |
| C20R-STUCR11-22 | TCMT1102 | 20 | 11 | 200 | 22 | 6° | CS25061S | FT-7 | |
| C20S-STUCR1102-22 | TCMT1102 | 20 | 11 | 250 | 22 | 6° | CS25061S | FT-7 | |
| C20R-STUCR16 | TCMT16T3 | 20 | 11 | 200 | 22 | 6° | CS35090 | FT-15 | |
| C25T-STUCR16 | TCMT16T3 | 25 | 14 | 300 | 28 | 6° | CS35090 | FT-15 | |
| E20R-STUCR16-22 | TCMT16T3 | 20 | 11 | 200 | 22 | 6° | CS35090 | FT-15 | |
