Grooving Holder GNDIR / GNDIR-B

Download
Inquiry
Back
Please click the picture to enlarge.

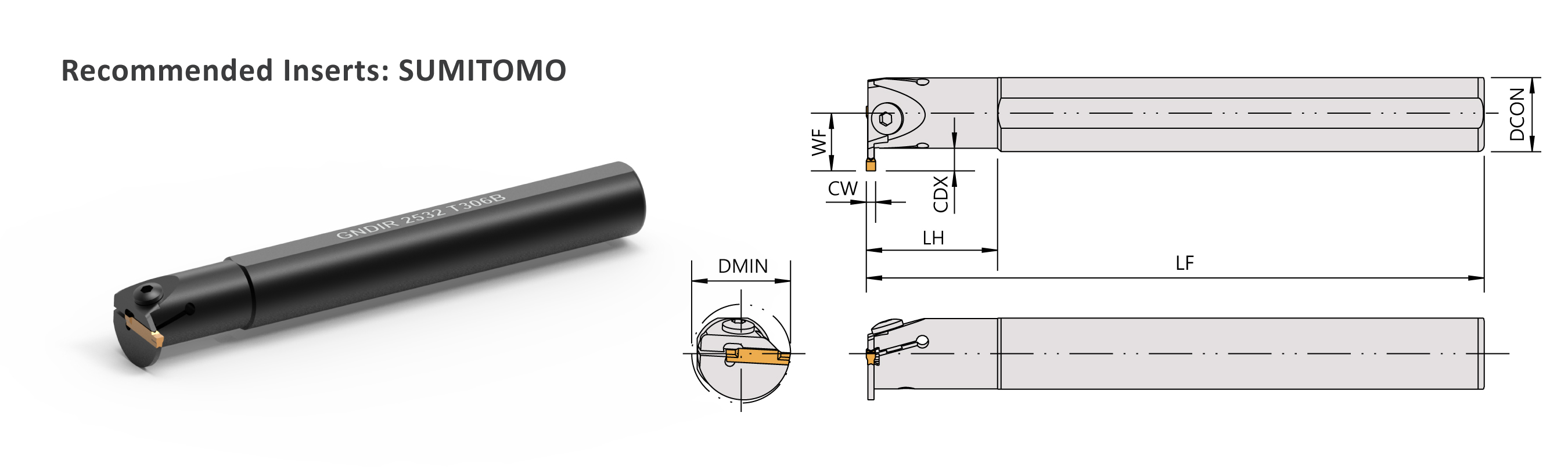

Specification

▼Recommended Inserts：SUMITOMO

Oder No.InsertDimensions(mm)PartsWrench
Right/Left DCON WF LF DAXIN LH CW CDX
GNDIR2024-T204 GCMN20 20 14 200 24 30 2 4 CSB0516 LW030
GNDIR2532-T206 GCMN20 25 19 200 32 40 2 6 CSB0516 LW030
GNDIR2026-T306 GCMN30 20 16 200 26 30 3 6 CSB0516 LW030
GNDIR2532-T306 GCMN30 25 19 200 32 40 3 6 CSB0516 LW030
GNDIR3240-T310 GCMN30 32 26 250 40 50 3 10 CSB0620 LW040
GNDIR4050-T311 GCMN30 40 31 300 50 60 3 11 CSB0620 LW040
GNDIR2030-T410 GCMN40 20 20 200 30 30 4 10 CSB0516 LW030
GNDIR2532-T406 GCMN40 25 19 200 32 40 4 6 CSB0516 LW030
GNDIR3240-T410 GCMN40 32 24 250 40 50 4 10 CSB0620 LW040
GNDIR4050-T411 GCMN40 40 30 300 50 60 4 11 CSB0620 LW040
Oder No.InsertDimensions(mm)PartsWrench
Right/Left DCON WF LF DMIN LH CW CDX
GNDIR2024-T204B GCMN20 20 14 150 24 20 2 4 CSB0516 LW030
GNDIR2532-T206B GCMN20 25 16 150 32 25 2 6 CSB0516 LW030
GNDIR2026-T306B GCMN30 20 16 150 26 20 3 6 CSB0516 LW030
GNDIR2532-T306B GCMN30 25 19 150 32 25 3 6 CSB0516 LW030
GNDIR3240-T310B GCMN30 32 26 200 40 32 3 10 CSB0620 LW040
GNDIR4050-T311B GCMN30 40 30 250 50 40 3 11 CSB0620 LW040
GNDIR5060-T311B GCMN30 50 35 300 60 50 3 11 CSB0620 LW040
GNDIR2532-T406B GCMN40 25 19 150 32 25 4 6 CSB0516 LW030
GNDIR3240-T410B GCMN40 32 24 200 40 32 4 10 CSB0620 LW040
GNDIR4050-T411B GCMN40 40 30 250 50 40 4 11 CSB0620 LW040
GNDIR5060-T411B GCMN40 50 35 300 60 50 4 11 CSB0620 LW040
GNDIR3240-T510B GCMN50 32 24 200 40 32 5 10 CSB0620 LW040
GNDIR4050-T511B GCMN50 40 30 250 50 40 5 11 CSB0620 LW040
GNDIR5060-T511B GCMN50 50 35 300 60 50 5 11 CSB0620 LW040
