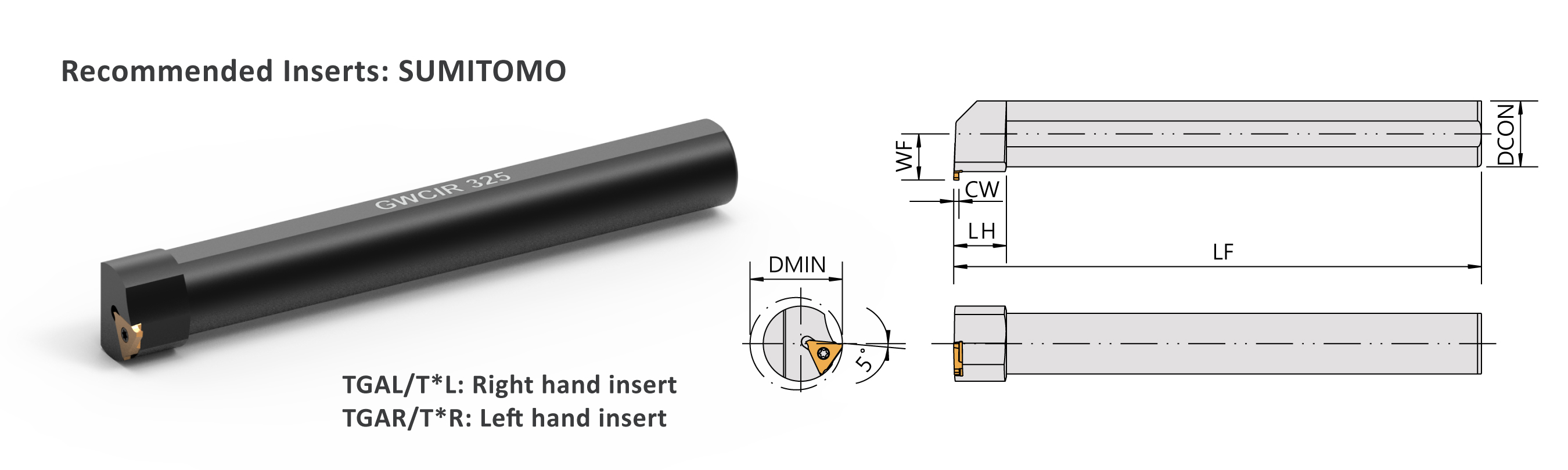

▼Recommended Inserts：SUMITOMO/ACC
| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||
|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
DCON | WF | LF | DAXIN | LH |  |
 |
| GWCIR/L320-150 | TGAR/L3 | 20 | 15 | 200 | 27 | 20 | CS40090 | TL-15 |
| GWCIR/L320 | TGAR/L3 | 20 | 15 | 200 | 27 | 20 | CS40090 | TL-15 |
| GWCIR/L325 | TGAR/L3 | 25 | 17.5 | 200 | 35 | 20 | CS40090 | TL-15 |
| GWCIR/L432 | TGAR/L4 | 32 | 22.5 | 200 | 40 | 25 | CS50100 | TL-20 |
TGAL/T*L: Right hand insert
TGAR/T*R: Left hand insert
