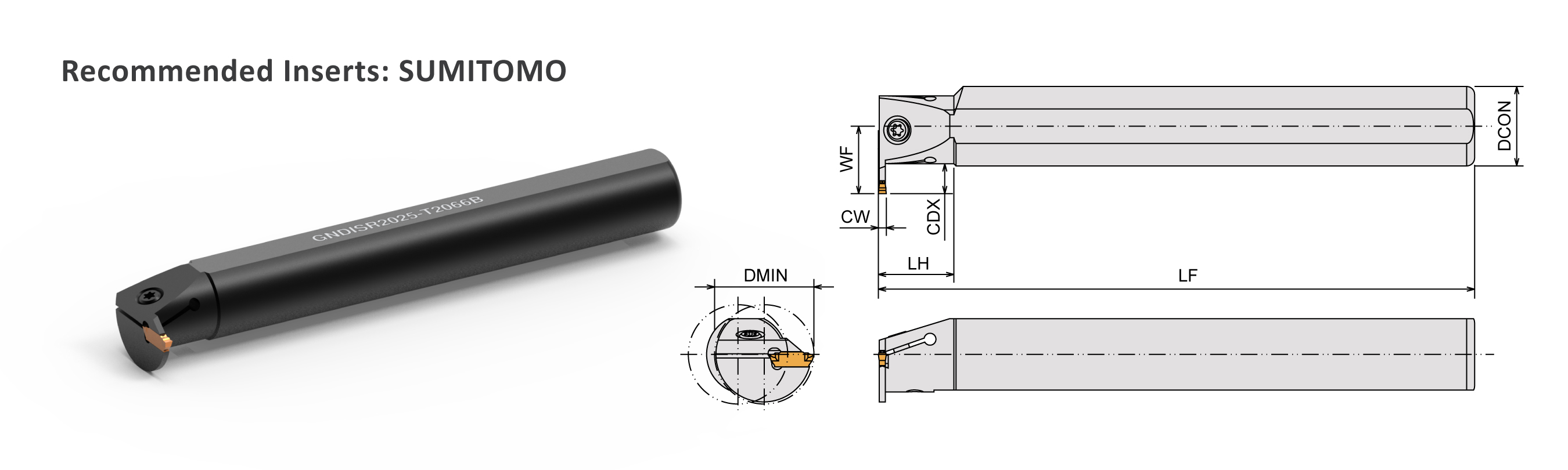

▼Recommended Inserts：SUMITOMO
▼GNDISR with coolant, GNDISR-B without coolant
| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
DCON | WF | LF | DAXIN | LH | CW | CDX |  |
 |
| GNDISR1013-T2030 | GXMN20 | 10 | 8 | 125 | 13 | 25 | 2 | 3 | CS40090 | TL-15 |
| GNDISR1214-T2036 | GXMN20 | 12 | 10 | 150 | 14 | 30 | 2 | 3.6 | CS40090 | TL-15 |
| GNDISR1616-T2036 | GXMN20 | 16 | 11.5 | 160 | 16 | 35 | 2 | 3.6 | CS50100 | TL-20N |
| GNDISR1620-T2046 | GXMN20 | 16 | 13 | 160 | 20 | 40 | 2 | 4.6 | CS50100 | TL-20N |
| GNDISR1214-T3040 | GXMN30 | 12 | 10.5 | 150 | 14 | 30 | 3 | 4 | CS40090 | TL-15 |
| GNDISR1616-T3036 | GXMN30 | 16 | 11.5 | 160 | 16 | 35 | 3 | 3.6 | CS50100 | TL-20N |
| GNDISR1620-T3050 | GXMN30 | 16 | 13.5 | 160 | 20 | 40 | 3 | 5 | CS50100 | TL-20N |
| GNDISR1013-T2030B | GXMN20 | 10 | 8 | 125 | 13 | 15 | 2 | 3 | CS40090 | TL-15 |
| GNDISR1214-T2036B | GXMN20 | 12 | 10 | 125 | 14 | 15 | 2 | 3.6 | CS40090 | TL-15 |
| GNDISR1616-T2036B | GXMN20 | 16 | 11.5 | 125 | 16 | 20 | 2 | 3.6 | CS50100 | TL-20N |
| GNDISR1620-T2046B | GXMN20 | 16 | 13 | 125 | 20 | 20 | 2 | 4.6 | CS50100 | TL-20N |
| GNDISR2025-T2066B | GXMN20 | 20 | 17 | 150 | 25 | 20 | 2 | 6.6 | CS50100 | TL-20N |
| GNDISR1214-T3036B | GXMN30 | 12 | 10 | 125 | 14 | 15 | 3 | 3.6 | CS40090 | TL-15 |
| GNDISR1214-T3040B | GXMN30 | 12 | 10.5 | 125 | 14 | 15 | 3 | 4 | CS40090 | TL-15 |
| GNDISR1616-T3036B | GXMN30 | 16 | 11.5 | 125 | 16 | 15 | 3 | 3.6 | CS50100 | TL-20N |
| GNDISR1620-T3046B | GXMN30 | 16 | 13 | 125 | 20 | 20 | 3 | 4.6 | CS50100 | TL-20N |
| GNDISR1620-T3050B | GXMN30 | 16 | 13.5 | 125 | 20 | 20 | 3 | 5 | CS50100 | TL-20N |
| GNDISR2025-T3066B | GXMN30 | 20 | 17 | 150 | 25 | 20 | 3 | 6.6 | CS50100 | TL-20N |
