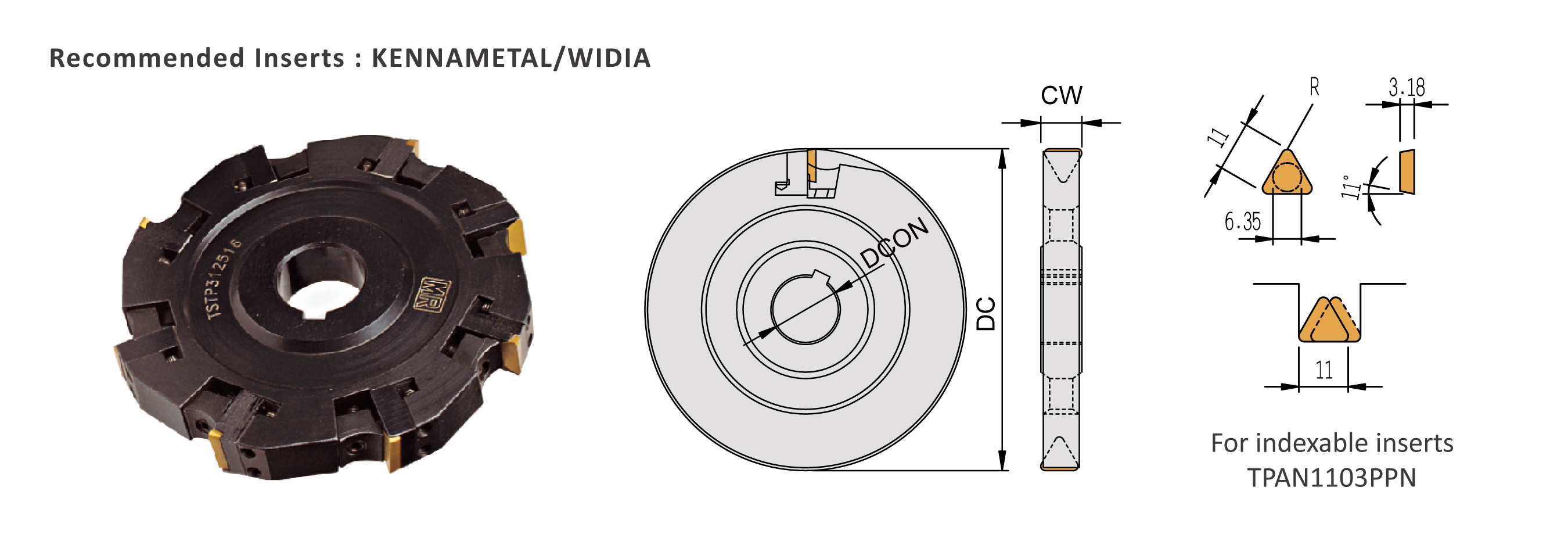

▼Recommended Inserts: KENNAMETAL / WIDIA
| Order No. | Insert | Dimensions(mm) | Locator | Locator Screw | Clamp | Clamp Screw | Wrench | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
DC | CW | DCON | DCON(inch) | I No. |  (R) |
 (L) |
 |
 |
 |
 |
|
| TSTP208012 | TP..1103 | 80 | 12 | 27 | 1" | 6 | TSL60-12 | TSL60-13 | CS9-3003 CS9-3006 |
CP50-6 | CS7-6016 | LW030 LW015 |
|
| TSTP210012 | 100 | 12 | 27 | 1" | 8 | TSL60-12 | TSL60-13 | CS9-3003 CS9-3006 |
CP50-6 | CS7-6016 | LW030 LW015 |
||
| TSTP212512 | 125 | 12 | 32 | 1-1/4" | 10 | TSL60-12 | TSL60-13 | CS9-3003 CS9-3006 |
CP50-6 | CS7-6016 | LW030 LW015 |
||
| TSTP216012 | 160 | 12 | 32 | 1-1/4" | 12 | TSL60-12 | TSL60-13 | CS9-3003 CS9-3006 |
CP50-6 | CS7-6016 | LW030 LW015 |
||
