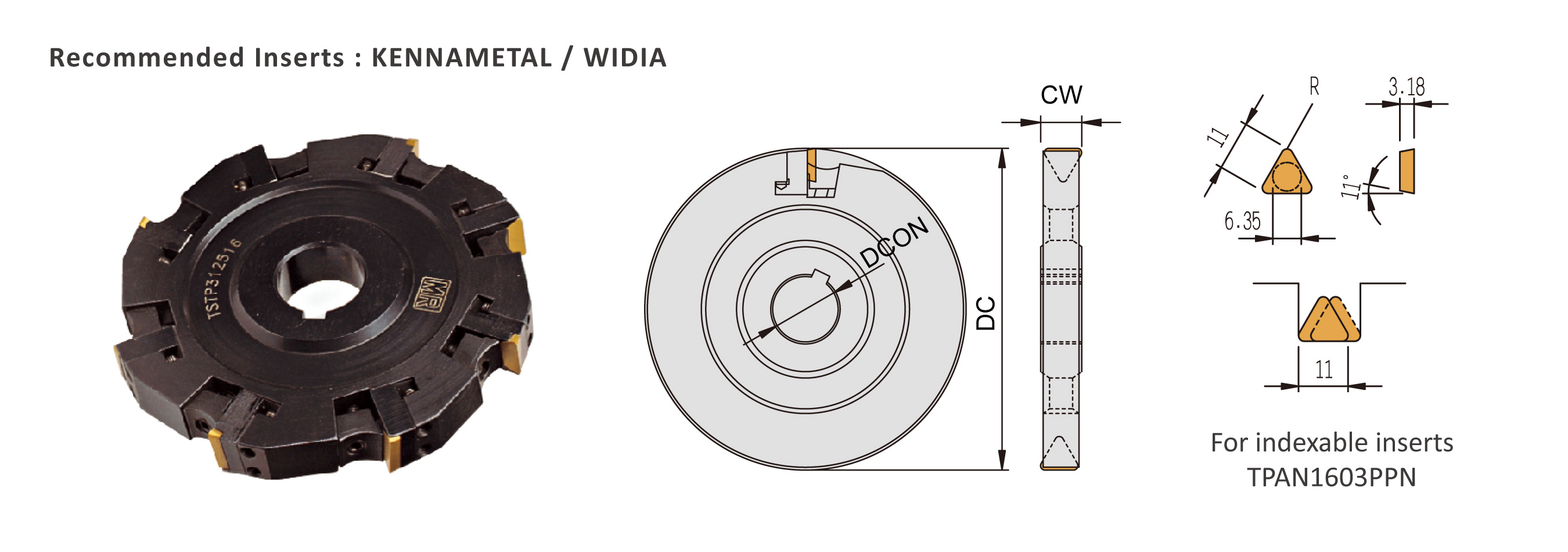

▼Recommended Inserts: KENNAMETAL & WIDIA
| Order No. | Insert | Dimensions | Locator | Locator Screw | Clamp | Clamp Screw | Wrench | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
DC | CW | DCON | DCON(inch) | I No. |  (R) |
 (L) |
 |
 |
 |
 |
| TSTP310016 | TP..1603 | 100 | 16 | 27 | 1" | 6 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
| TSTP310018 | 100 | 18 | 27 | 1" | 6 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
|
| TSTP312516 | 125 | 16 | 32 | 1-1/4" | 8 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
|
| TSTP312518 | 125 | 18 | 32 | 1-1/4" | 8 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
|
| TSTP312520 | 125 | 20 | 32 | 1-1/4" | 8 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
|
| TSTP316016 | 160 | 16 | 32 | 1-1/4" | 10 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
|
| TSTP316018 | 160 | 18 | 32 | 1-1/4" | 10 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
|
| TSTP316020 | 160 | 20 | 32 | 1-1/4" | 10 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
|
| TSTP320018 | 200 | 18 | 32 | 1-1/2" | 12 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
|
| TSTP320020 | 200 | 20 | 32 | 1-1/2" | 12 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
|
| TSTP325018 | 250 | 18 | 32 | 2" | 16 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
|
| TSTP325020 | 250 | 20 | 32 | 2" | 16 | TSL60-14 | TSL60-15 | CS9-4003 CS9-4012 |
CP50-9 | CS7-6016 | LW030 LW020 |
|
