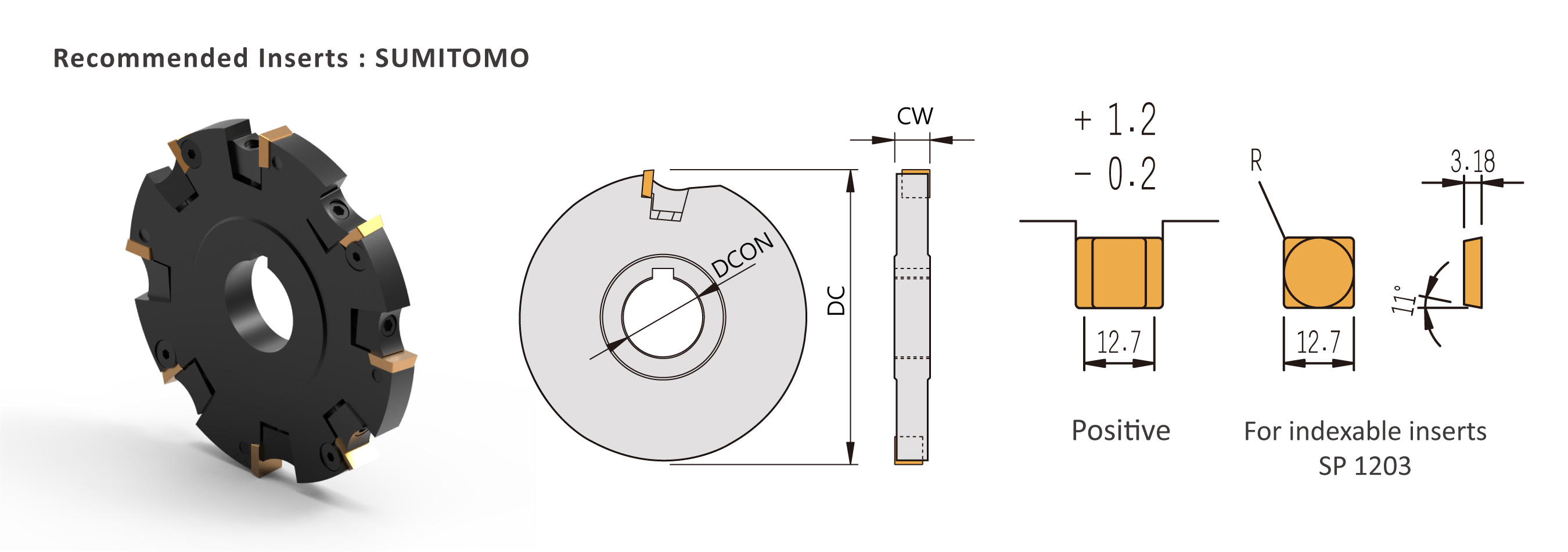

▼Recommended Inserts: SUMITOMO
| Order No. | Insert | Dimensions(mm) | Insert Clamp | Locking Screw | Clamp Screw | Wrench | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
DC | CW | DCON | DCON(inch) | I No |  |
 |
 |
 |
| TSSP410016 | SP..1203 | 100 | 16 | 27 | 1" | 8 | CP50-9 | CS7-6016 | CS70-7 | LW020 LW025 LW030 |
| TSSP410018 | 100 | 18 | 27 | 1" | 8 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP412516 | 125 | 16 | 32 | 1-1/4" | 12 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP412518 | 125 | 18 | 32 | 1-1/4" | 12 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP412520 | 125 | 20 | 32 | 1-1/4" | 12 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP416016 | 160 | 16 | 32 | 1-1/4" | 16 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP416018 | 160 | 18 | 32 | 1-1/4" | 16 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP416020 | 160 | 20 | 32 | 1-1/4" | 16 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP417516 | 175 | 16 | 40 | 1-1/2" | 18 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP417518 | 175 | 18 | 40 | 1-1/2" | 18 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP417520 | 175 | 20 | 40 | 1-1/2" | 18 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP420016 | 200 | 16 | 40 | 1-1/2" | 20 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP420018 | 200 | 18 | 40 | 1-1/2" | 20 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP420020 | 200 | 20 | 40 | 1-1/2" | 20 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP425016 | 250 | 16 | 50 | 2" | 24 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP425018 | 250 | 18 | 50 | 2" | 24 | CP50-9 | CS7-6016 | CS70-7 | ||
| TSSP425020 | 250 | 20 | 50 | 2" | 24 | CP50-9 | CS7-6016 | CS70-7 | ||
