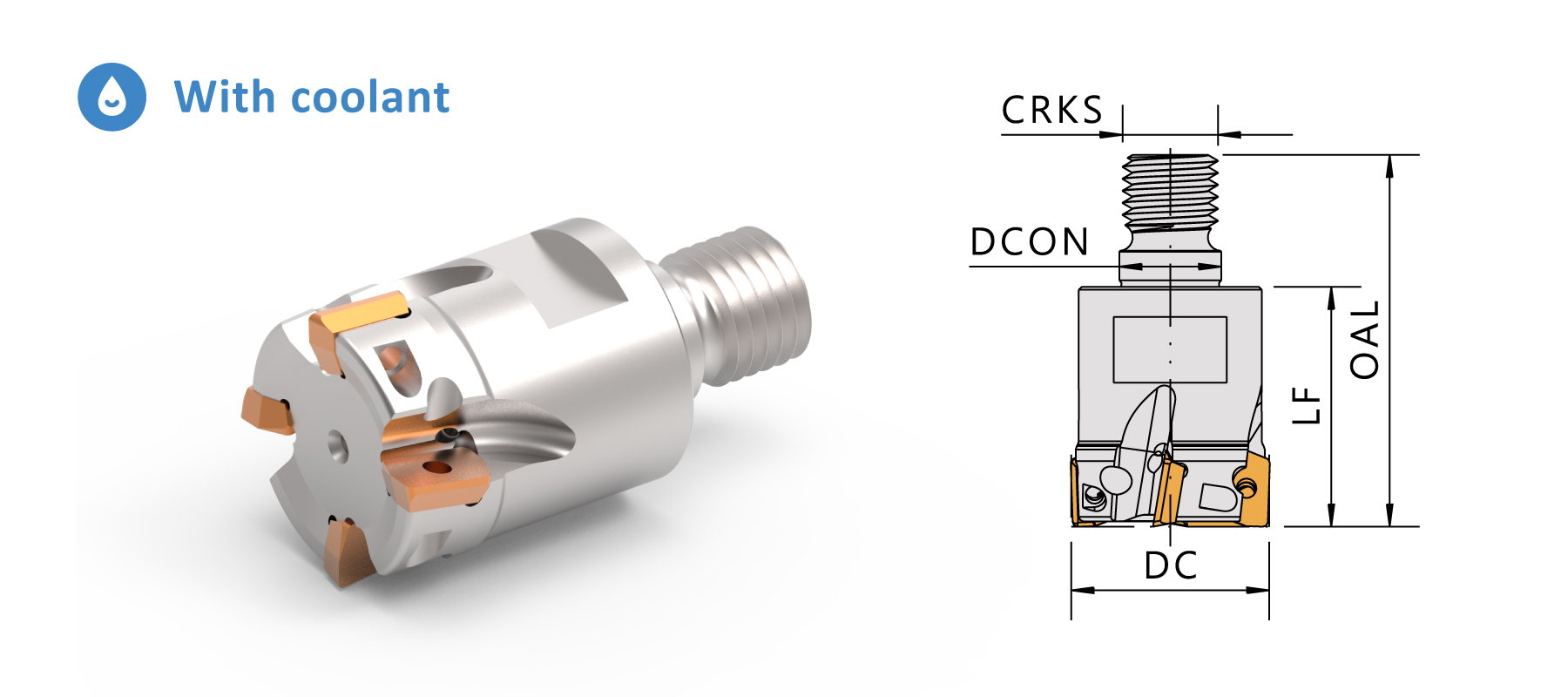

▼Recommended Inserts:SUMITOMO ▼with coolant
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | |||||
|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
DC | DCON | OAL | LF | CRKS | I No. |  |
 |
| WEZ11013M06Z1H | AOMT11T3 AOET11T3 |
13 | 6.5 | 39.5 | 25 | 6 | 1 | CS3006P | FT-8P |
| WEZ11017M08Z2H | 17 | 8.5 | 43 | 25 | 8 | 2 | |||
| WEZ11021M10Z2H | 21 | 10.5 | 49 | 30 | 10 | 2 | |||
| WEZ11026M12Z3H | 26 | 12.5 | 57 | 35 | 12 | 3 | |||
| WEZ11033M16Z4H | 33 | 17 | 62 | 40 | 16 | 4 | |||
*WEZ11013M06Z1H with cooling channel
*WEZ11013M06Z1 without cooling channel
