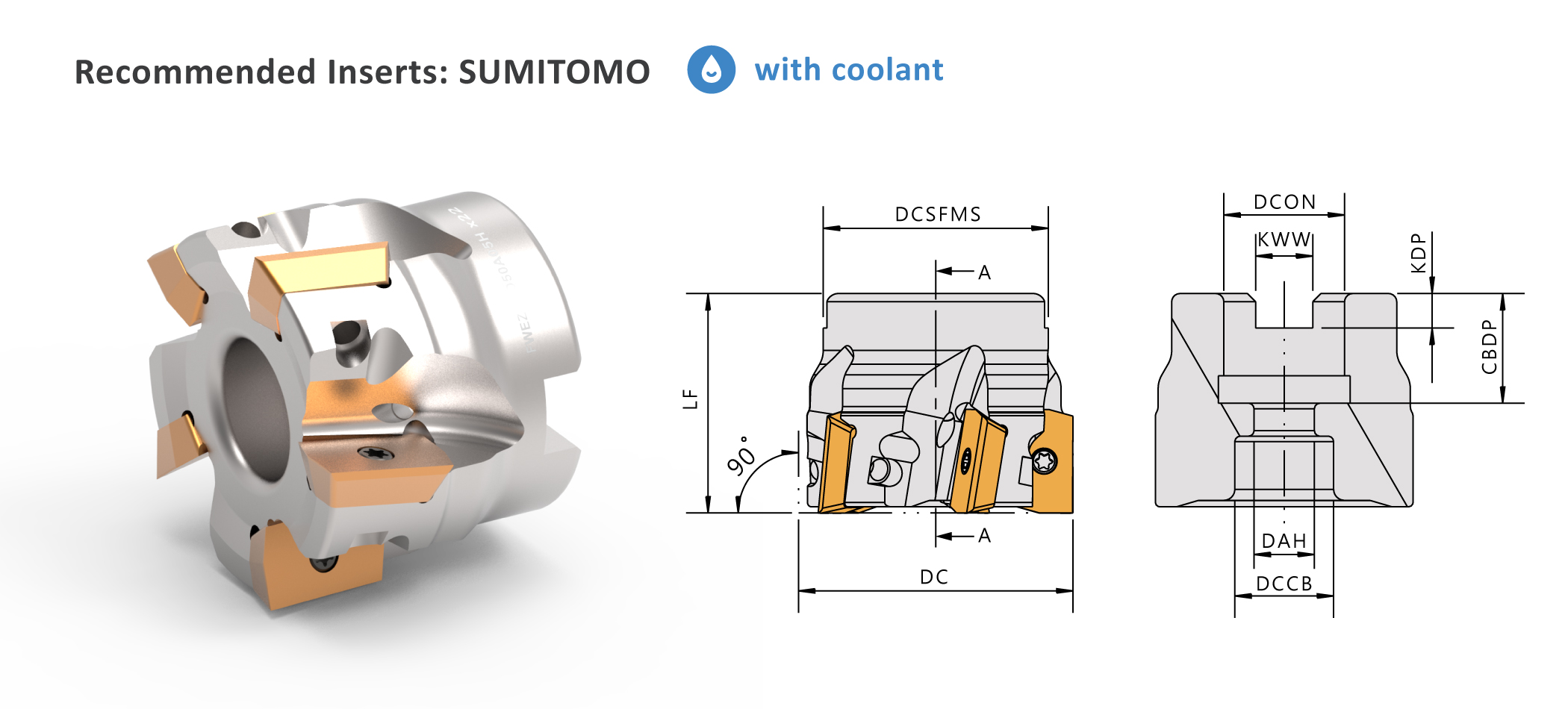

Face Mills FWEZ17

Please click the picture to enlarge.

Specification

▼Recommended Inserts:SUMITOMO ▼with coolant thru

Order No.InsertDimensions(mm)ScrewWrench
Right / Left DC LF DCON DCON(inch) I No.
FWEZ17-D40A03H AOMT1705
AOET1705
40 40 16 - 3 4 - CS4009P DBIT-TP15
FWEZ17-D50A03H 50 40 22 - 3 5 -
FWEZ17-D63A04H 63 40 22 - 4 6 -
FWEZ17-D80A04H 80 50 27 1" 4 7 -
FWEZ17-D100B05H 100 50/63 32 1-1/4" 5 8 -
FWEZ17-D125A06H 125 63 40 1-1/2" 6 9 11
FWEZ17-D160C08H 160 63 40 2" 8 10 12

*FWEZ17-D40A03H with coolant thru
*FWEZ17-D40A03 without coolant thru
