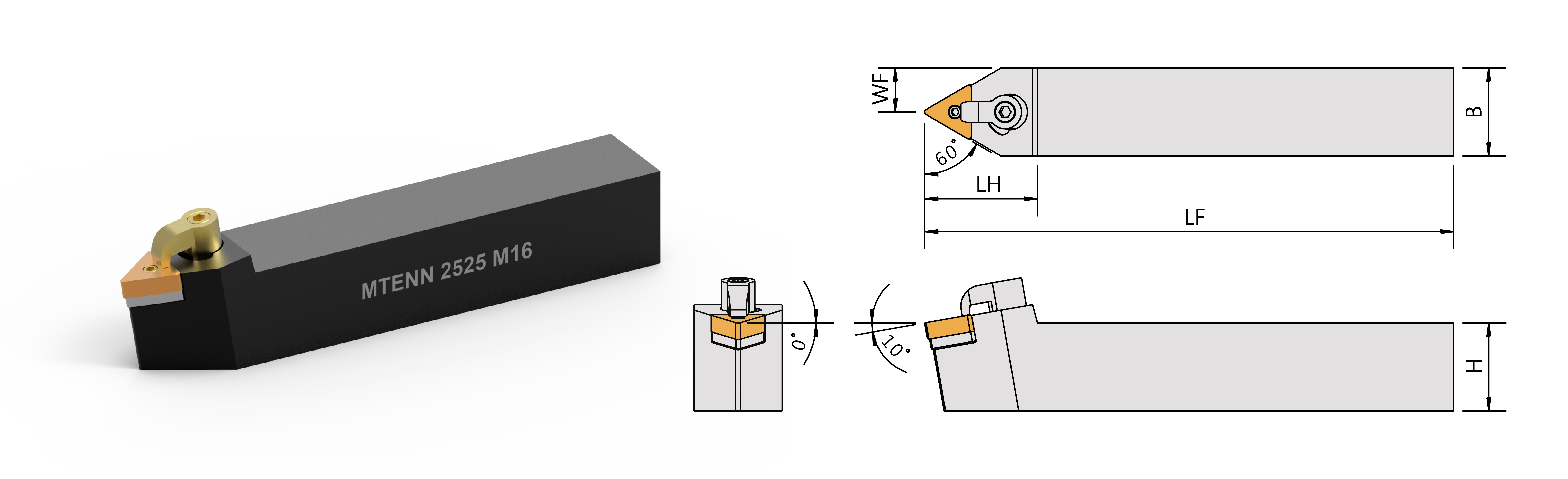

External Turning Tools MTENN 60°

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF
MTENN2020K16 TNMG1604 20 20 125 38 10 SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
MTENN2525M16 TNMG1604 25 25 150 40 12.5 SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
MTENN3225P16 TNMG1604 32 25 170 38 12.5 SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
MTENN3232P16 TNMG1604 32 32 170 43 16 SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
MTENN2525M22 TNMG2204 25 25 150 40 12.5 SMT-433 LCS-617 CP50-28 CS7-8030 LW030 LW040
MTENN3225P22 TNMG2204 32 25 170 43 12.5 SMT-433 LCS-617 CP50-28 CS7-8030 LW030 LW040
MTENN3232P22 TNMG2204 32 32 170 43 16 SMT-433 LCS-617 CP50-28 CS7-8030 LW030 LW040
