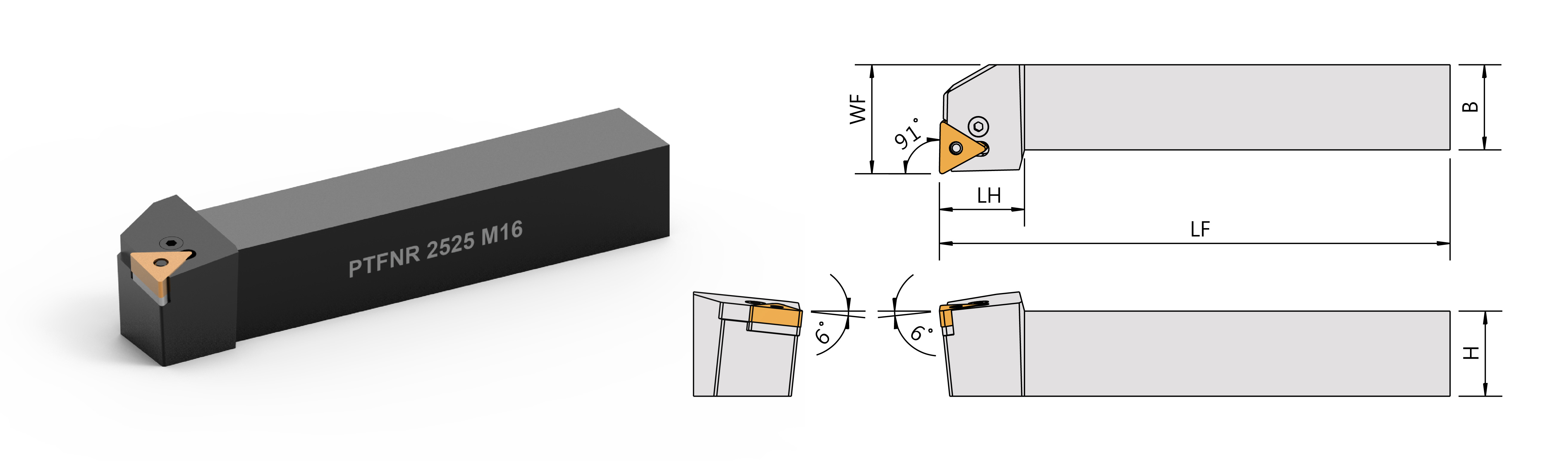

External Turning Tools PTFN 91°

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF
PTFNR/L-2020K16 TNMG1604 20 20 125 20 25 SMT-31T CS-LSP3 CP-LL3 CS-LS3 LW025
PTFNR/L-2525M16 TNMG1604 25 25 150 20 32 SMT-31T CS-LSP3 CP-LL3 CS-LS3 LW025
