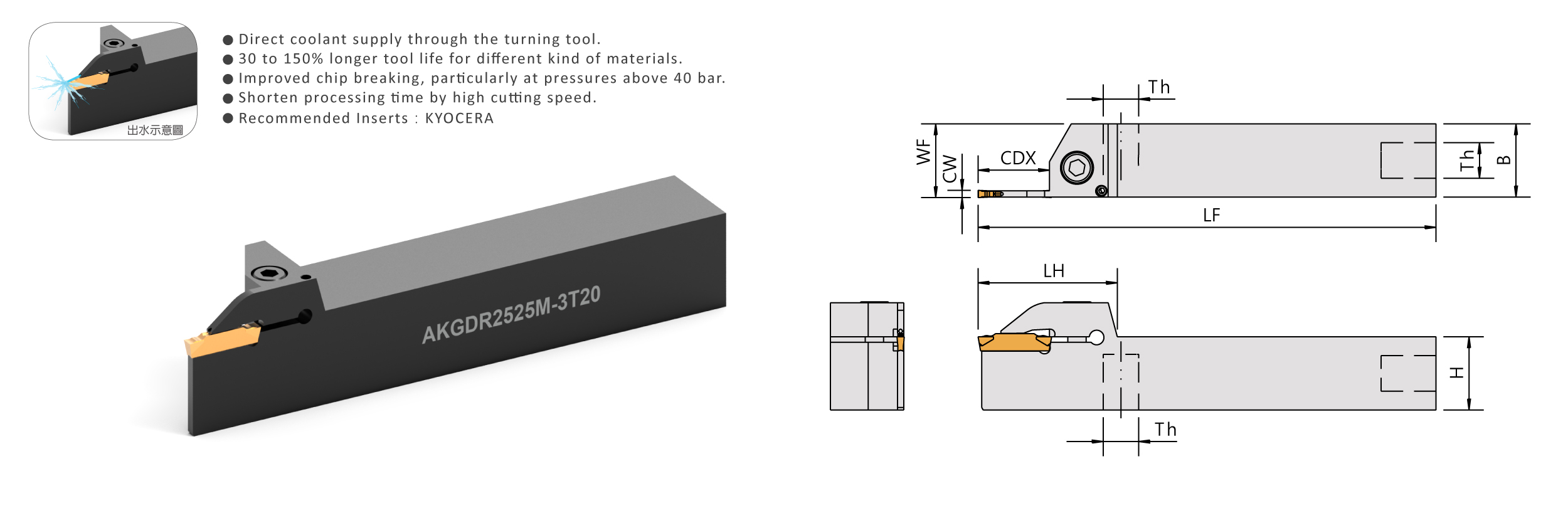

▼Recommended Inserts：KYOCERA
| Order No. | Insert | Dimensions | Parts | Wrench | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left | H | B | LF | WF | LH | CW | CDX | HBH | Th |  |
 |
 |
 |
|
| AKGDR1212H-2T13 | GDM20 | 12 | 12 | 100 | 12.15 | 24 | 2 | 13 | 2 | 5/16" | CSB0414 | CS9NN CS9-2002 CS9-5005 |
AA-NP | FT-15 LW025 LW040 |
| AGKGDR/L1212JX-2T12JF | 12 | 12 | 120 | 12.15 | 24 | 2 | 12 | 2 | 5/16" | CSR50140 | - | FT-15 LW040 |
||
| AKGDL1212JX-2T13JF | 12 | 12 | 120 | 12.15 | 25 | 2 | 13 | 2 | 5/16" | CSR50140 | - | |||
| AKGDR1212K-2T18 | 12 | 12 | 125 | 12.15 | 30 | 2 | 18 | 2 | 5/16" | CSB0414 | AA-NP | LW025 LW040 |
||
| AKGDR1616H-2T13 | 16 | 16 | 100 | 16.15 | 33 | 2 | 13 | 4 | 1/8" | CSH0514 | CS9NQ CS9-3003 |
- | LW040 | |
| AKGDR/L1616JX-2T17JF | 16 | 16 | 120 | 16.15 | 29 | 2 | 17 | - | 1/8" | CSR50140 | CS9NQ CS9-2002 CS9-6006 |
- | FT-15 LW040 |
|
| AKGDR1616K-2T18 | 16 | 16 | 125 | 16.15 | 36 | 2 | 18 | 4 | 1/8" | CSH0514 | CS9NQ CS9-3003 |
- | LW040 | |
| AKGDR/L2020K-2T18S | 20 | 20 | 125 | 20.15 | 38 | 2 | 18 | - | 1/8" | CSH0520 | CS9NQ CS9-25025 |
- | LW040 | |
| AKGDR2525M-2T18S | 25 | 25 | 150 | 25.15 | 38 | 2 | 18 | - | 1/8" | CSH0520 | CS9NQ CS9-25025 |
- | LW040 | |
| AKGDR1212K-3T18 | GDM30 | 12 | 12 | 125 | 12.3 | 30 | 3 | 18 | 2 | 5/16" | CSH0520 | CS9NN CS9-3003 |
AA-NP | LW040 |
| AKGDR1616K-3T18 | 16 | 16 | 125 | 16.3 | 36 | 3 | 18 | 4 | 1/8" | CSH0520 | CS9NQ CS9-3003 |
- | LW040 | |
| AKGDR2020K-3T18 | 20 | 20 | 125 | 20.3 | 38 | 3 | 18 | - | 1/8" | CSH0520 | CS9NQ CS9-3003 |
- | LW040 | |
| AKGDR2525M-3T13 | 25 | 25 | 150 | 25.3 | 33 | 3 | 13 | - | 1/8" | CSH0520 | CS9NQ CS9-3003 |
- | LW040 | |
| AKGDR2525M-3T20 | 25 | 25 | 150 | 25.3 | 38 | 3 | 20 | - | 1/8" | CSH0520 | CS9NQ CS9-3003 |
- | LW040 | |
