▼Recommended Inserts: MITSUBISHI / Standard with Coolant hole

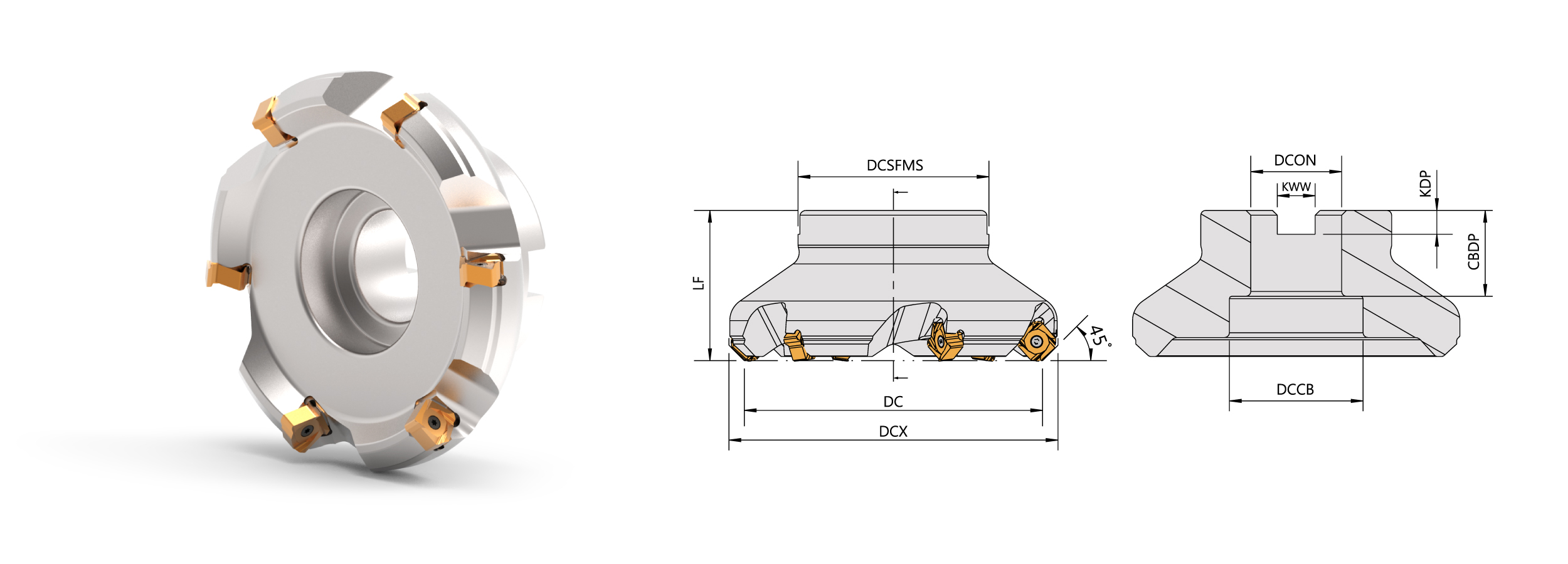

| Order No. | Insert | Dimensions(mm) | Screw | Wrench | |||||
|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
DC | DCX | DCSFMS | LF | DCON | I No. |  |
 |
| WSX445-050A03 | SNMU1408 | 50 | 62.9 | 47 | 40 | 22 | 3 | CSR4012PS | IP15 |
| WSX445-050A04 | 50 | 62.9 | 47 | 40 | 22 | 4 | |||
| WSX445-063A04 | 63 | 75.9 | 50 | 40 | 1" | 4 | |||
| WSX445-063A05 | 63 | 75.9 | 50 | 40 | 1" | 5 | |||
| WSX445-080A04 | 80 | 92.9 | 56 | 50 | 1" | 4 | |||
| WSX445-080A06 | 80 | 92.9 | 56 | 50 | 1" | 6 | |||
| WSX445-100B05 | 100 | 112.9 | 70 | 50 | 1-1/4" | 5 | |||
| WSX445-100B07 | 100 | 112.9 | 70 | 50 | 1-1/4" | 7 | |||
| WSX445-125B06 | 125 | 137.9 | 80 | 63 | 1-1/2" | 6 | |||
| WSX445-125B08 | 125 | 137.9 | 80 | 63 | 1-1/2" | 8 | |||
| WSX445-160B07 | 160 | 172.9 | 100 | 63 | 2" | 7 | |||
| WSX445-160B10 | 160 | 172.9 | 100 | 63 | 2" | 10 | |||
| WSX445-200C08 | 200 | 212.9 | 175 | 63 | 1-7/8" | 8 | |||
| WSX445-200C12 | 200 | 212.9 | 175 | 63 | 1-7/8" | 12 | |||
