| Order No. | Insert | Dimensions(mm) | Locator | Insert Clamp | Clamp Screw | Locator Screw | Washer | Wrench | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |

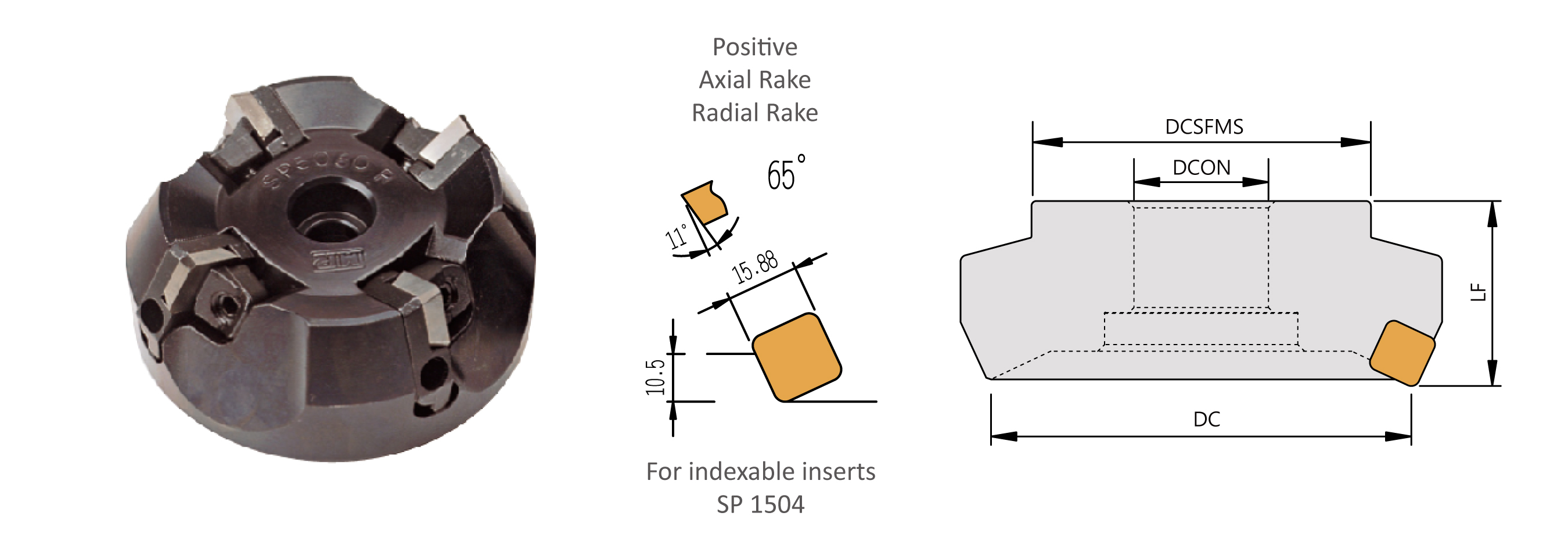

DC | DCSFMS | LF | DCON | DCON(inch) | I No. |  |
 |
 |
 |
 |
 |
|||
| SP5080R | SP..1504 | 80 | 65 | 50 | 27 | 1" | 4 | SPL60-5 | CP50-7 | CS70-1 | CSH0412 | CS70-3 | TW040 | |||
| SP5100R | SP..1504 | 100 | 78 | 55 | 32 | 1-1/4" | 5 | SPL60-5 | CP50-7 | CS70-1 | CSH0412 | CS70-3 | TW040 | |||
| SP5125R | SP..1504 | 125 | 101 | 55 | 40 | 1-1/2" | 6 | SPL60-5 | CP50-7 | CS70-1 | CSH0412 | CS70-3 | TW040 | |||
| SP5160R | SP..1504 | 160 | 125 | 60 | 40 | 2" | 8 | SPL60-5 | CP50-7 | CS70-1 | CSH0412 | CS70-3 | TW040 | |||
| SP5200R | SP..1504 | 200 | 170 | 60 | 60 | 1-7/8" | 10 | SPL60-5 | CP50-7 | CS70-1 | CSH0412 | CS70-3 | TW040 | |||
| SP5250R | SP..1504 | 250 | 220 | 60 | 60 | 1-7/8" | 12 | SPL60-5 | CP50-7 | CS70-1 | CSH0412 | CS70-3 | TW040 | |||
| SP5315R | SP..1504 | 315 | 282 | 60 | 60 | 1-7/8" | 14 | SPL60-5 | CP50-7 | CS70-1 | CSH0412 | CS70-3 | TW040 | |||
| SP5360R | SP..1504 | 360 | 295 | 65 | 60 | 1-7/8" | 16 | SPL60-5 | CP50-7 | CS70-1 | CSH0412 | CS70-3 | TW040 | |||
