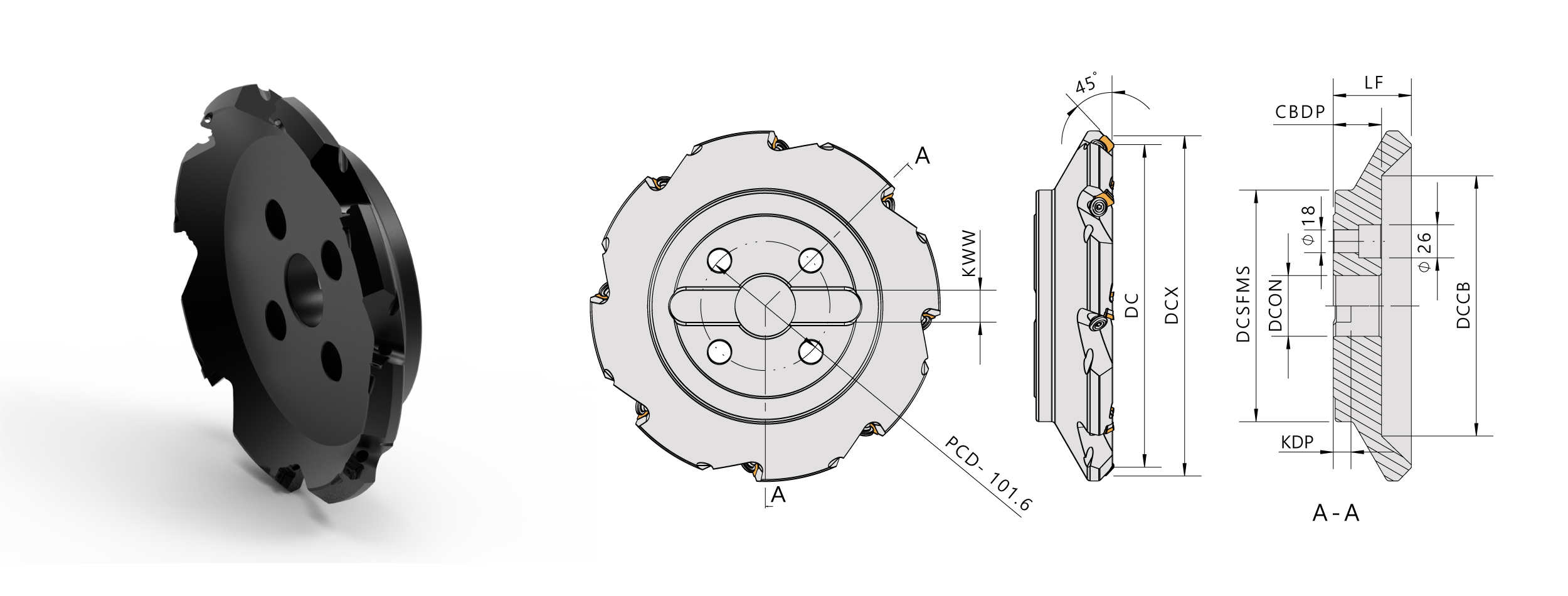

| Order No. | Insert | Dimensions(mm) | Shim | Shim Screw | Locking Screw(R) | Locking Screw(L) | Wrench | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
DC | DCSFMS | LF | DCON | DCON(inch) | I No. |  |
 |
 |
 |
 |
||||
| SE4-12506R/L | SEEN1203 | 125 | 148 | 55 | - | 1-1/2" | 6 | SMS-42 | CSA4009F | CS6-0823L | CS6-0823R | FT-7 | TW040 | |||
| SE4-16008R/L | SEEN1203 | 160 | 180 | 60 | - | 2" | 8 | SMS-42 | CSA4009F | CS6-0823L | CS6-0823R | FT-7 | TW040 | |||
| SE4-20010R/L | SEEN1203 | 200 | 220 | 60 | - | 1-7/8" | 10 | SMS-42 | CSA4009F | CS6-0823L | CS6-0823R | FT-7 | TW040 | |||
| SE4-25012R/L | SEEN1203 | 250 | 274 | 63 | - | 1-7/8" | 12 | SMS-42 | CSA4009F | CS6-0823L | CS6-0823R | FT-7 | TW040 | |||
| SE4-30514R/L | SEEN1203 | 305 | 325 | 65 | - | 1-7/8" | 14 | SMS-42 | CSA4009F | CS6-0823L | CS6-0823R | FT-7 | TW040 | |||
| SE4-35616R/L | SEEN1203 | 356 | 376 | 63 | - | 1-7/8" | 16 | SMS-42 | CSA4009F | CS6-0823L | CS6-0823R | FT-7 | TW040 | |||
