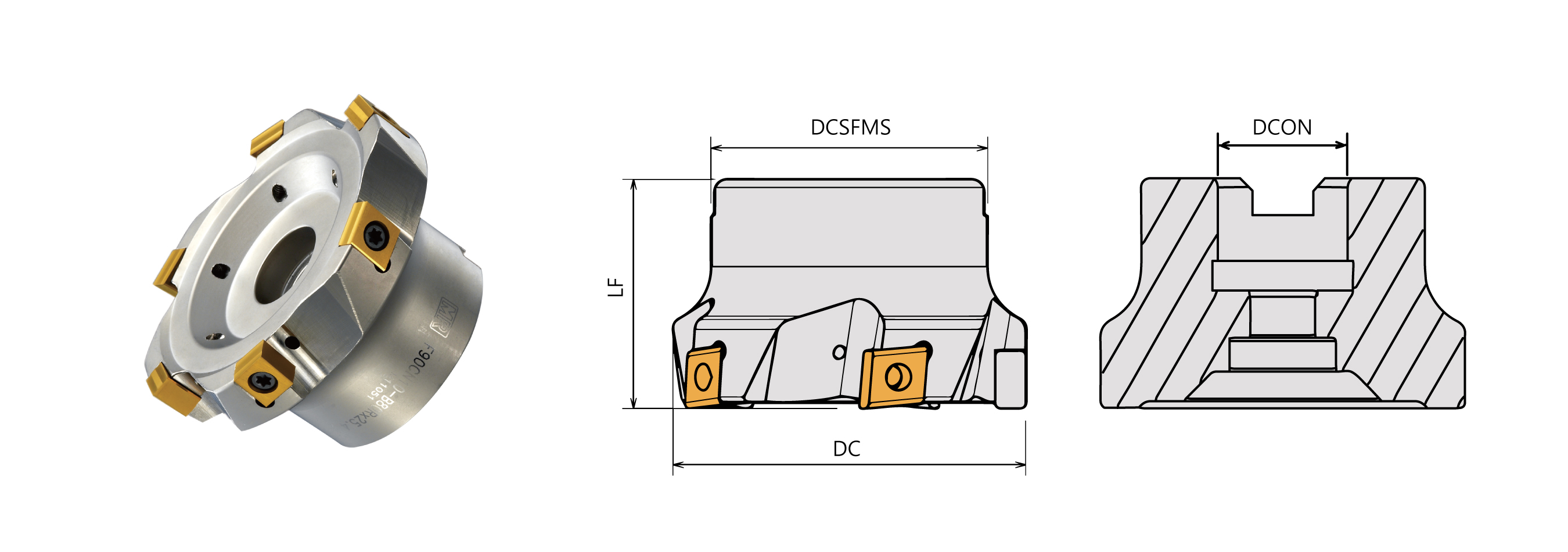

Please click the picture to enlarge.

Order No.	Insert	Dimensions(mm)						Type	screw	Wrench
Right/Left		DC	DCSFMS	LF	DCON	DCON(inch)	I No.
F90CN10-D40R	CNHX1005	40	35	40	16	-	3	TSCN10	CS40110	DT-15
F90CN10-D50R	CNHX1005	50	45	40	22	-	4	TSCN10	CS40110	DT-15
F90CN10-D63R	CNHX1005	63	48	40	22	1"	5	TSCN10	CS40110	DT-15
F90CN10-D80R	CNHX1005	80	52	45	27	1"	6	TSCN10	CS40110	DT-15
F90CN10-D100R	CNHX1005	100	70	55	32	1-1/4"	7	TSCN10	CS40110	DT-15
