Face Mills ASX4-S W/SHIM

Please click the picture to enlarge.

Specification

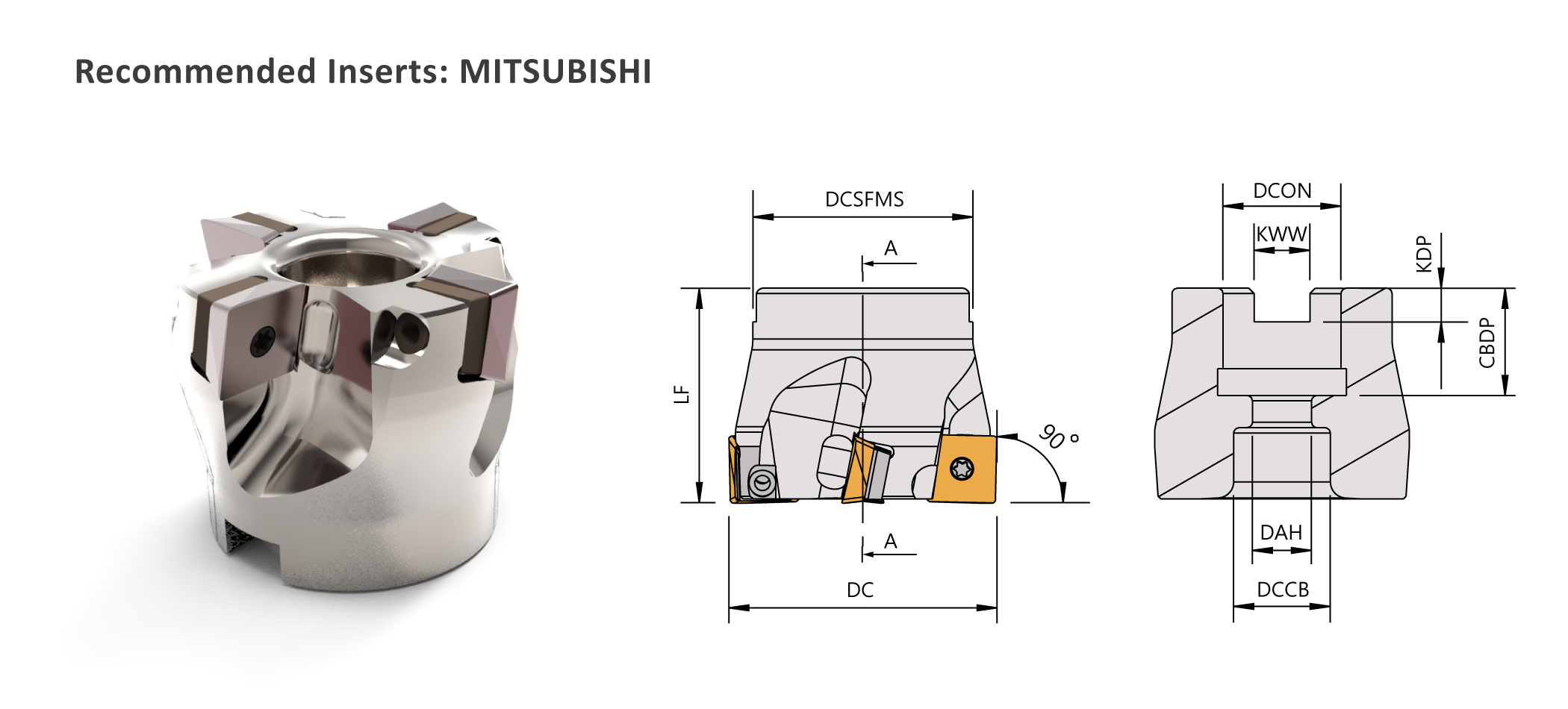

▼Recommended Inserts: MITSUBISHI

Order No.InsertDimensions(mm)ShimShim ScrewScrewWrench
Right / Left DC LF DCON DCON(inch) DCSFMS I No.
ASX4-05004RS SOMT12T308 50 40 22 - 41 4 SMS321 SN535 CS35117S DBIT-T15
ASX4-06305RS 63 46 22 1" 50 5
ASX4-08004RS 80 50 - 1" 60 4
ASX4-08006RS 80 50 27 1" 60 6
ASX4-10007RS 100 50 32 1-1/4" 70 7
ASX4-12508RS 125 63 40 1-1/2" 80 8
ASX4-16012RS 160 63 40 2" 100 12
ASX4-20016RS 200 63 60 - 160 16
ASX4-25018RS 250 63 60 - 210 18
