External Turning Tools PSBN 75°

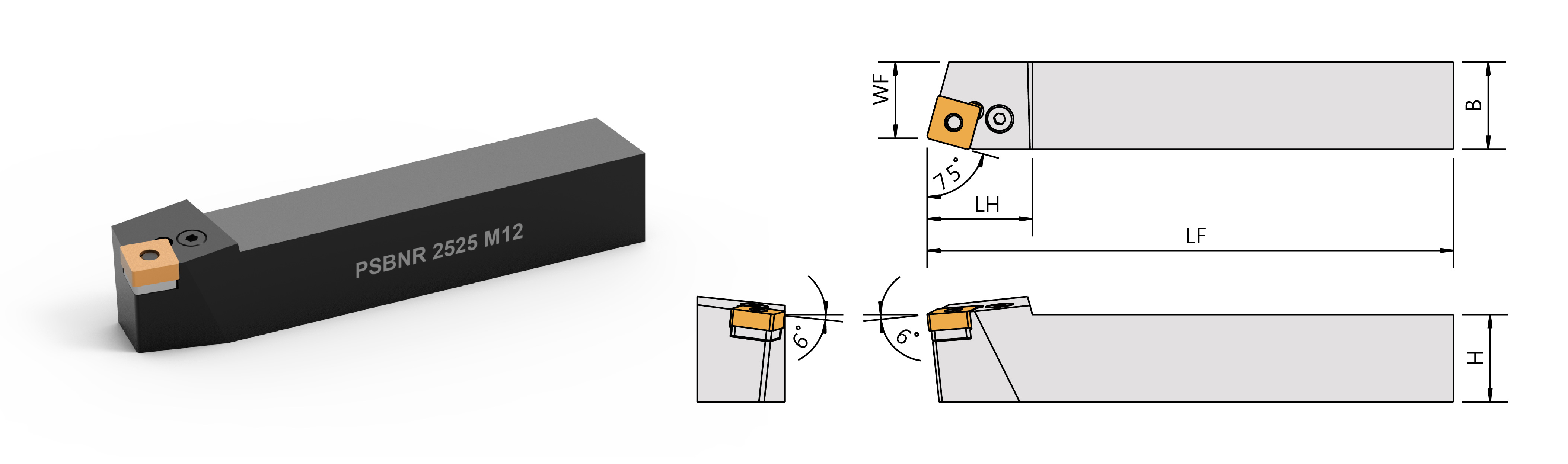

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF
PSBNR/L-2020K12 SNMG1204 20 20 125 30 17 SMS-422 CS-LSP4 CP-LL4 CS-LS4 LW030
PSBNR/L-2525M12 SNMG1204 25 25 150 30 22 SMS-422 CS-LSP4 CP-LL4 CS-LS4 LW030
PSBNR/L-3225P12 SNMG1204 32 25 170 30 22 SMS-422 CS-LSP4 CP-LL4 CS-LS4 LW030
PSBNR/L-3232P12 SNMG1204 32 32 170 35 29 SMS-422 CS-LSP4 CP-LL4 CS-LS4 LW030
