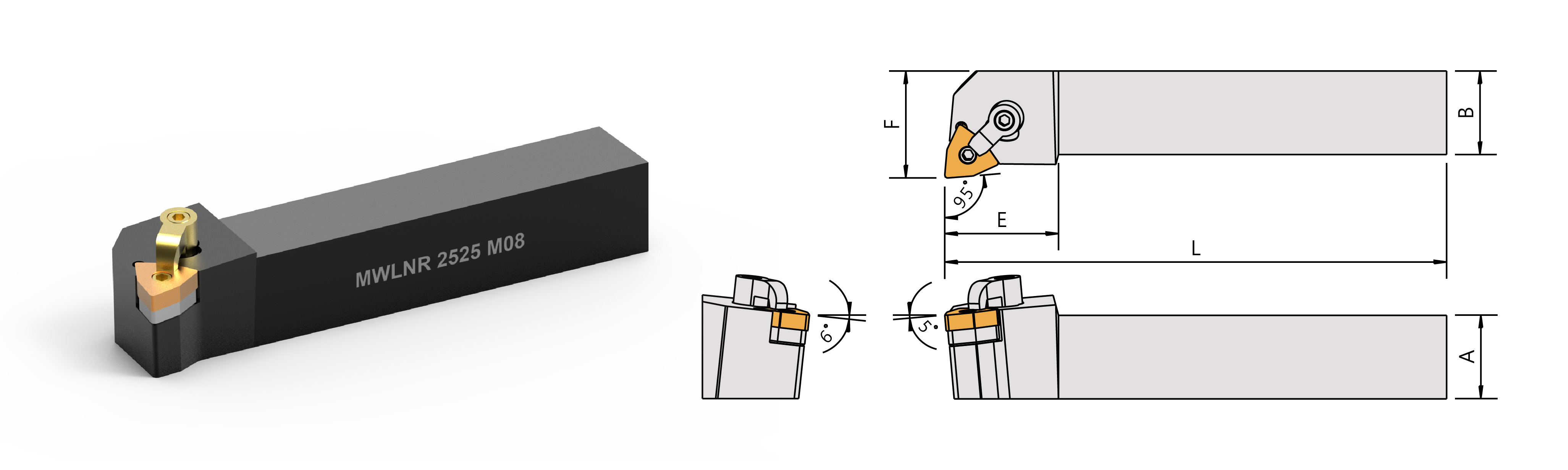

External Turning Tools MWLN 95°

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF
MWLNR/L-2020K06 WNMG0604 20 20 125 34 25 SMW-321 LCS-513 CP50-30 CS7-5018 LW020 LW025
MWLNR/L-2525M06 WNMG0604 25 25 150 34 32 SMW-321 LCS-513 CP50-30 CS7-5018 LW020 LW025
MWLNR/L-2020K08 WNMG0804 20 20 125 34 25 SMW-432 LCS-617 CP50-22 CS7-6030 - LW030
MWLNR/L-2525M08 WNMG0804 25 25 150 34 32 SMW-432 LCS-617 CP50-22 CS7-6030  - LW030
MWLNR/L-3225P08 WNMG0804 32 25 170 40 32 SMW-432 LCS-617 CP50-22 CS7-6030  - LW030
MWLNR/L-3232P08 WNMG0804 32 32 170 40 40 SMW-432 LCS-617 CP50-22 CS7-6030  - LW030
