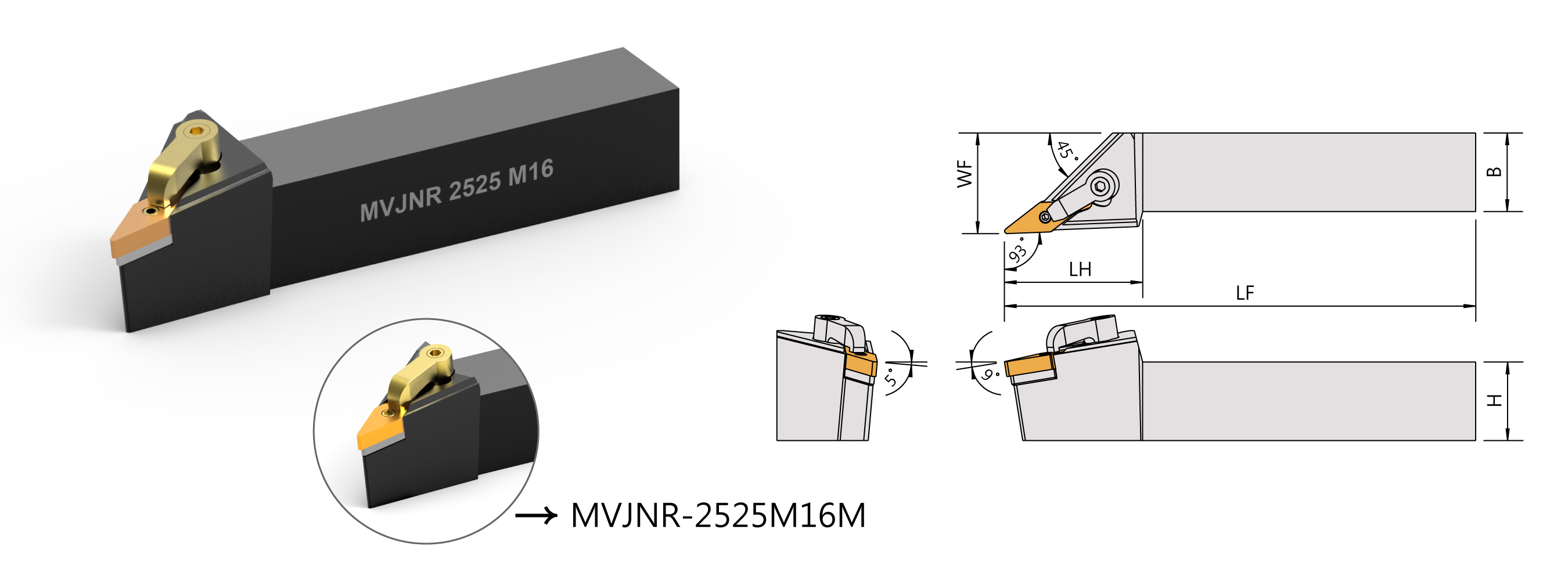

External Turning Tools MVJN/MVJN-M 93°

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF
MVJNR/L-1616M16 VNMG1604 16 16 150 26 20 SMV-322 LCS-513 CP50-25 CS7-6030 LW020 LW030
MVJNR/L-2020K16 20 20 125 39 25
MVJNR/L-2525M16 25 25 150 44 32
MVJNR/L-3225P16 32 25 170 44 32
MVJNR/L-3232P16 32 32 170 45 40
MVJNR/L-2020K16M VNMG1604 20 20 125 43 25 SMV-322 LCS-513 CP50-25 CS7-6030 LW020 LW030
MVJNR/L-2525M16M VNMG1604 25 25 150 43 32 SMV-322 LCS-513 CP50-25 CS7-6030 LW020 LW030
