External Turning Tools MTGN 91°

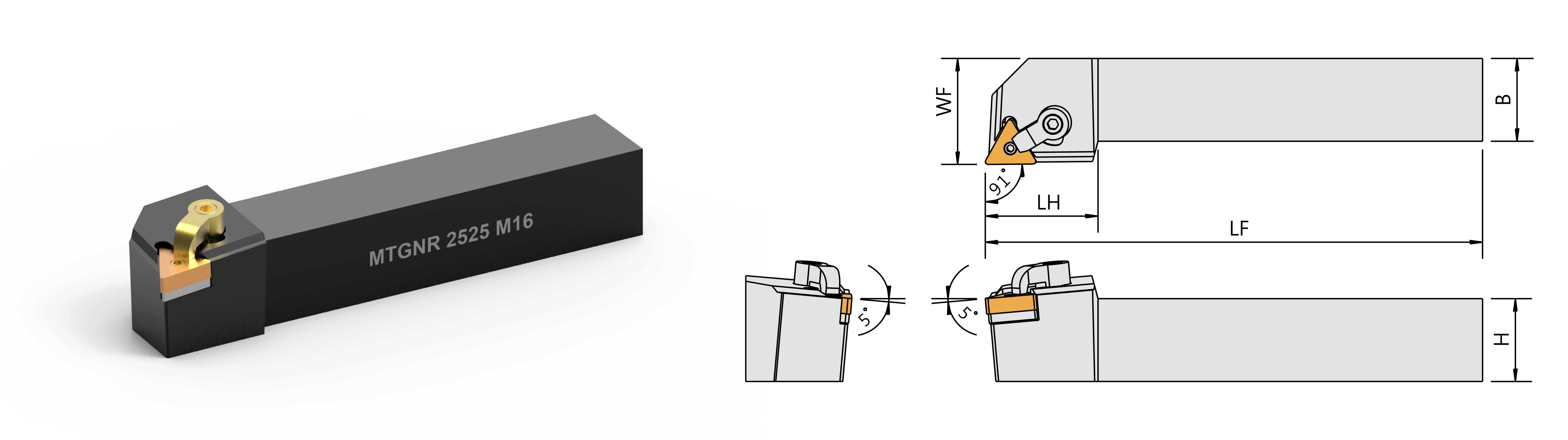

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF
MTGNR/L-1616H16 TNMG1604 16 16 100 30 20 SMT-322 LCS-513 CP50-22 CS7-6024 LW020 LW030
MTGNR/L-2020K16 TNMG1604 20 20 125 34 25 SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
MTGNR/L-2525M16 TNMG1604 25 25 150 34 32 SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
MTGNR/L-3232P16 TNMG1604 32 32 170 34 40 SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
