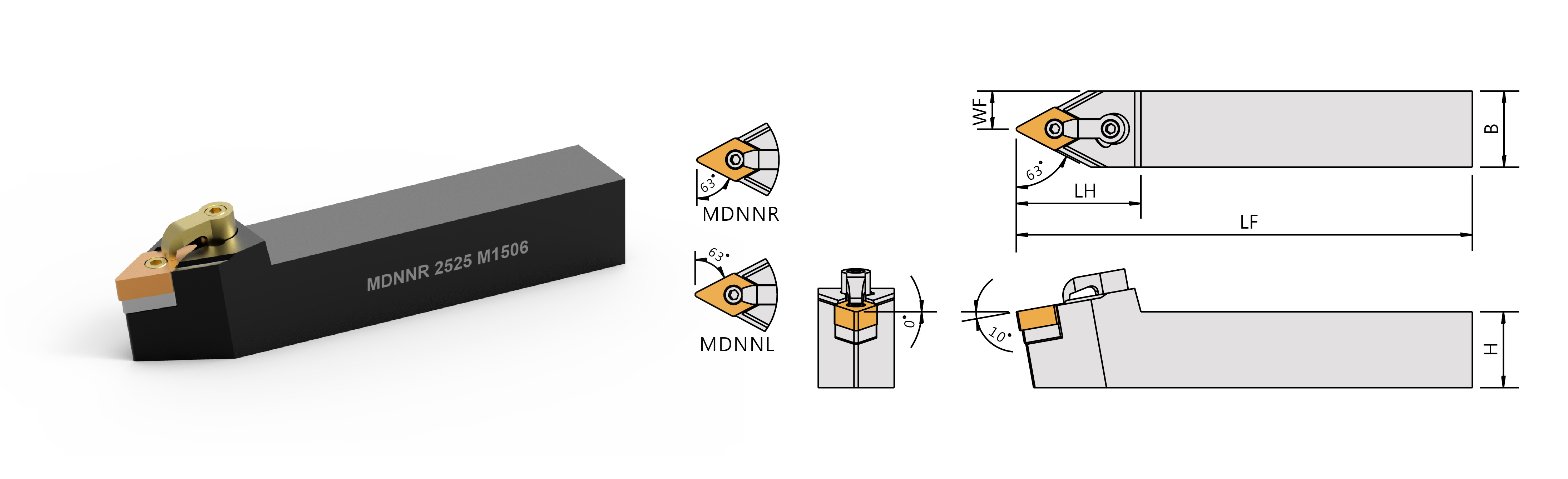

External Turning Tools MDNN 63°

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF
MDNNR/L2020K15 DNMG1504-SMD463
DNMG1506-SMD443
20 20 125 41 10 SMD-4X3 LCS-619 CP50-24 CS7-6030 LW030
MDNNR/L2525M15 25 25 150 41 12.5 SMD-4X3 LCS-619 CP50-24 CS7-6030 LW030
MDNNR/L3225P15 32 25 170 42 12.5 SMD-4X3 LCS-619 CP50-24 CS7-6030 LW030
MDNNR/L3232P15 32 32 170 43 16 SMD-4X3 LCS-619 CP50-24 CS7-6030 LW030
