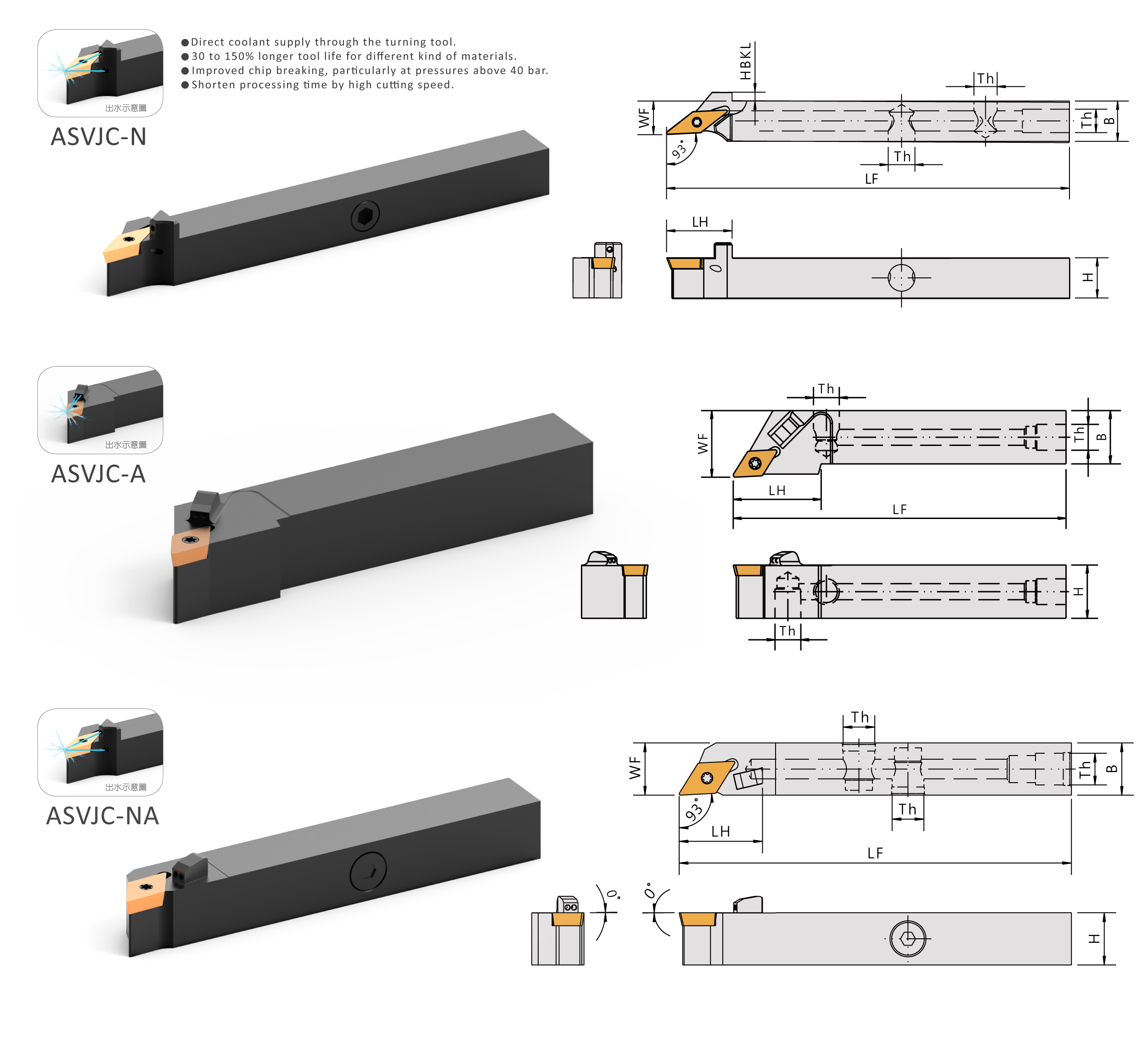

Oder No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Right/Left | H | B | LF | LH | WF | HBKL | Th | |||||||
ASVJCR-1010H11-F08 | VCMT1103 | 10 | 10 | 100 | 19.5 | 8 | 2.5 | 5/16" | - | - | CS25055PS | CS9NN CS9-3003 |
AA-NP | FT-7 LW040 |
ASVJCR-1212-11NACB | 12 | 12 | 140 | 24 | 12 | 4.5 | 5/16" | - | - | CS25055PS | CS9NN CS9-4004 |
|||
ASVJCR/L-1212H11-F10 | 12 | 12 | 100 | 19.5 | 10 | 2.5 | 5/16" | - | - | CS25055PS | CS9NN CS9-3003 |
|||
ASVJCR-1212H11N | 12 | 12 | 100 | 27.5 | 12 | - | 5/16" | - | - | CS25060 | CS9NN CS9-3003 |
|||
ASVJCR-1212JX11NA | 12 | 12 | 120 | 27.5 | 12 | - | 5/16" | - | - | CS25060 | CS9NN CS9-3003 |
|||
ASVJCR/L-1616H11-F14 | 16 | 16 | 100 | 36 | 14 | - | 1/8" | - | - | CS25060 | CS9NQ CS9-3003 |
- | ||
ASVJCR-1616-11NACB | VCMT1604 | 16 | 16 | 140 | 27.5 | 16 | - | 1/8" | - | - | CS25060 | CS9NQ CS9-3003 |
||
ASVJCR/L-2020K16-A | 20 | 20 | 125 | 33 | 25 | - | 1/8" | SMV-321 | SN535 | CS35117S | CS9NQ | FT-15 LW040 |
||
ASVJCR-2020K16-F18 | 20 | 20 | 125 | 25 | 18 | - | 1/8" | - | - | CS35117S | CS9NQ CS9-3003 |
|||
ASVJCR/L-2525M16-A | 25 | 25 | 150 | 33 | 32 | - | 1/8" | SMV-321 | SN535 | CS35117S | CS9NQ |
