External Turning Tools ASDJC 93°

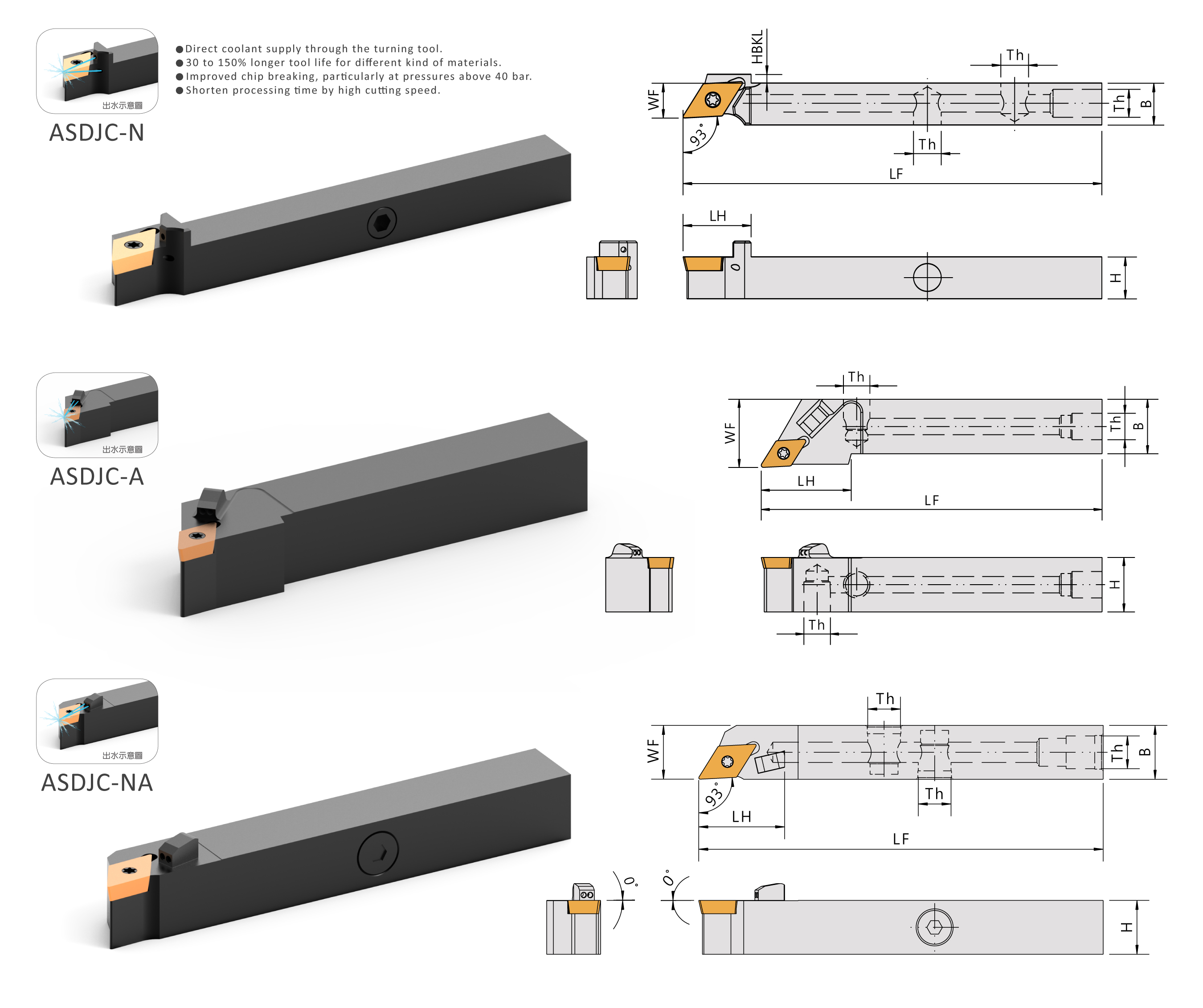

Please click the picture to enlarge.

Specification

Oder No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF HBKL Th
ASDJCR-1212H11N DCMT11T3 12 12 100 24 12 3 5/16" CS35119S CS9NN
CS9-4004
AA-NP FT-15
LW040
ASDJCR-1212H11-F10 12 12 100 19.5 10 4 5/16" CS9NN
CS9-3003
ASDJCR/L-1212JX11NA 12 12 120 19.5 10 4 5/16" CS9NN
CS9-4004
ASDJCR-1616H11N 16 16 100 24 16 - 1/8" CS9NQ
CS9-4004
-
ASDJCR-1616JX11NA 16 16 120 19.5 14 - 1/8" CS35095
ASDJCR-2020K11-A 20 20 125 33 25 - 1/8" CS9NQ
CS9-3003
ASDJCR-2525M11-A 25 25 150 38 32 - 1/8" CS35119S
