| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |

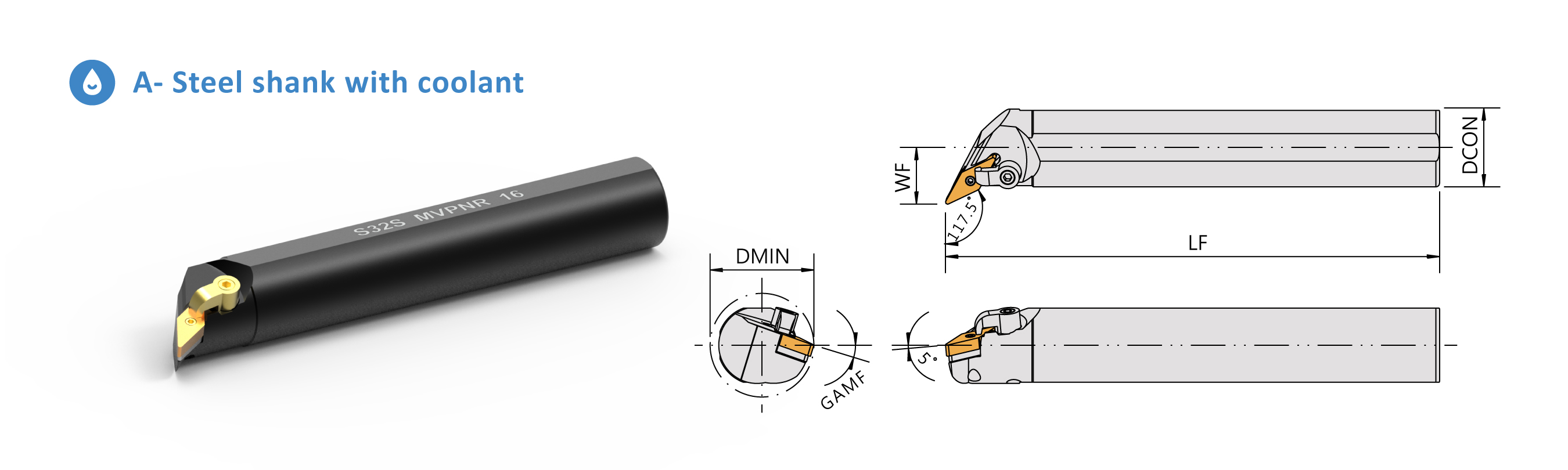

DCON | WF | LF | DMIN | GAMF |  |
 |
 |
 |
 |
|
| S25R-MVPNR/L16 | VNMG1604 | 25 | 20 | 200 | 33 | 12° | SMV-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| S32S-MVPNR/L16 | VNMG1604 | 32 | 23 | 250 | 40 | 17° | SMV-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| S40T-MVPNR/L16 | VNMG1604 | 40 | 27 | 300 | 50 | 15° | SMV-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| S50U-MVPNR/L16 | VNMG1604 | 50 | 33 | 350 | 63 | 12° | SMV-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
