Please click the picture to enlarge.

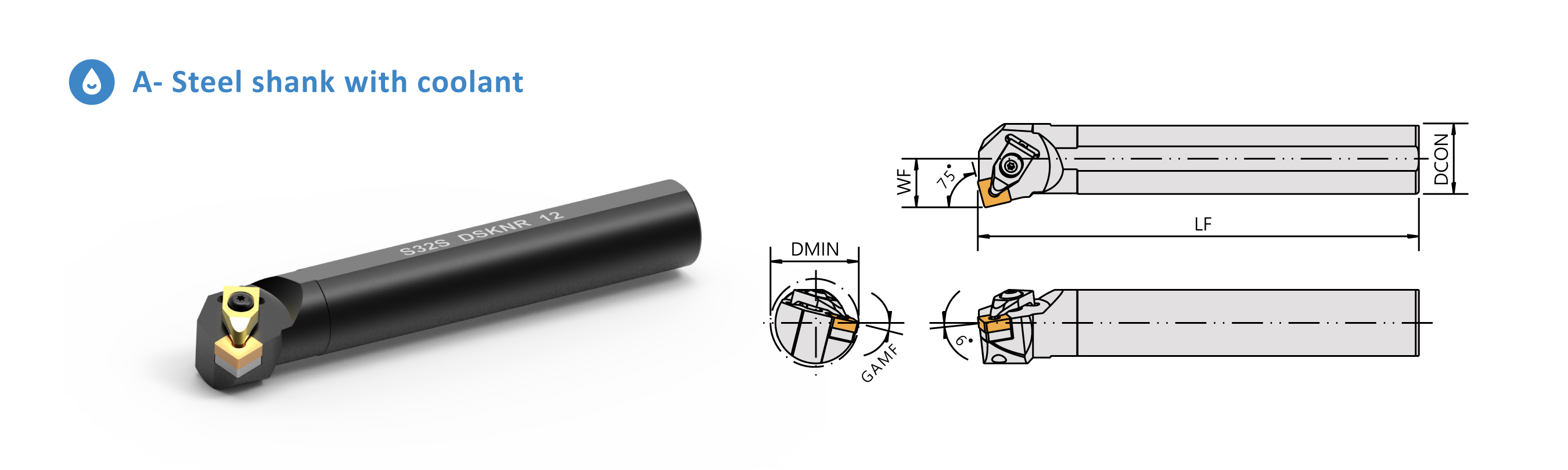

Order No.	Insert	Dimensions(mm)					Parts					Wrench
Right/Left		DCON	WF	LF	DMIN	GAMF
S25R-DSKNR/L12	SNMG1204	25	17	200	32	14°	--	--	CP-D4	SP0816	CSB0620T	TL20
S32S-DSKNR/L12		32	22	250	40	14°	SMS-422	CSF4010	CP-D4	SP0816	CSB0620T	TL20
S40V-DSKNR/L12		40	35	400	63	8°	SMS-422	CSF4010	CP-D4	SP0816	CSB0620T	TL20
S50V-DSKNR/L12		50	35	400	63	8°	SMS-432	CSF4010	CP-D4	SP0816	CSB0620T	TL20
