▼Inserts刀片:
●: Stock / ◎: 1st Choice, ○: 2nd Choice, X: Not Recommend
| P | 鋼 Carbon Steels | ◎ | ||||||
| M | 不鏽鋼 Stainless Steels | ○ | ◎ | |||||
| K | 鑄鐵 Cast Iron | ◎ | ||||||
| N | 鋁合金 Aluminum Alloys | |||||||
| S | 高溫合金 Superalloys | ○ | ||||||

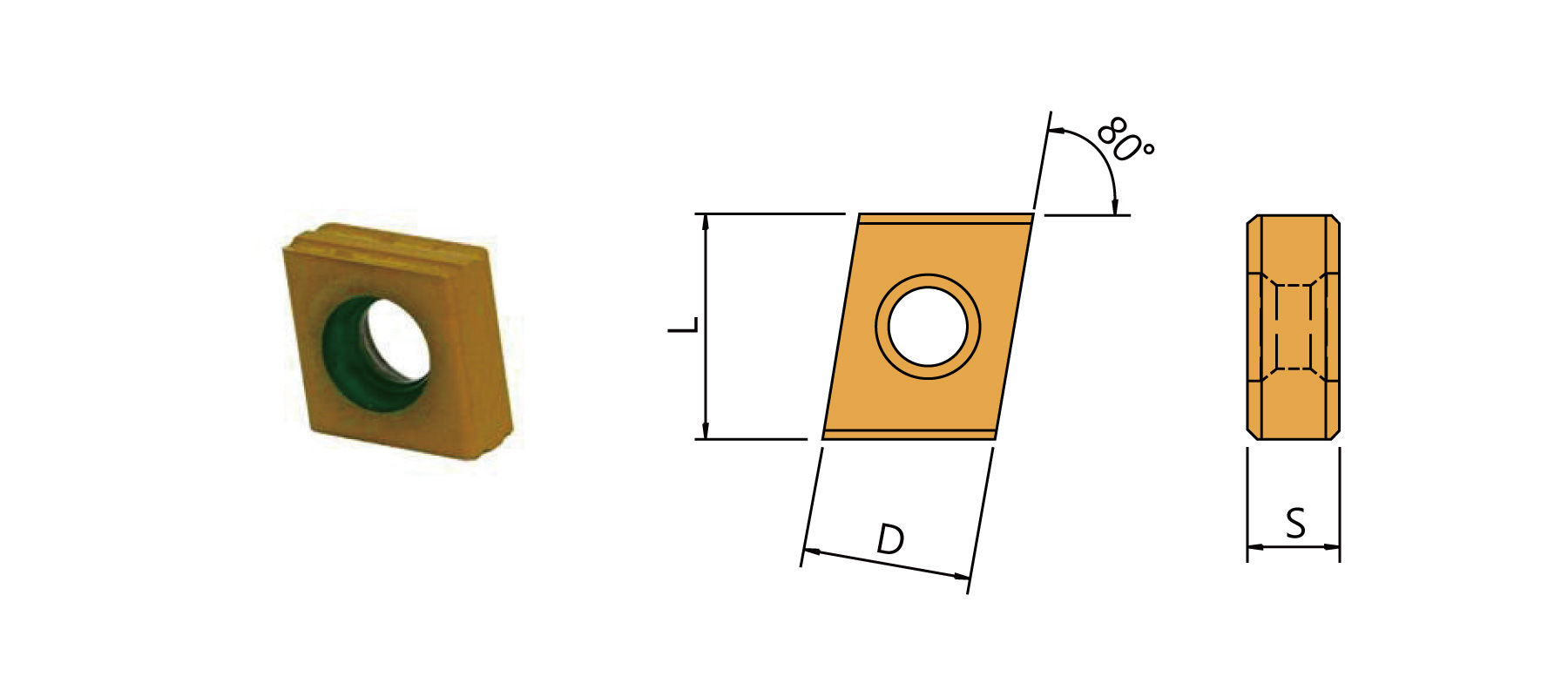

| Specification | Dimensions(mm) | Grade | ||||||
|---|---|---|---|---|---|---|---|---|
| Insert | L | D | S | r | c | AK100 | TM150 | TH200 |
| CNHU1005 | 10.00 | 10.06 | 5.4 | - | 0.2 | ● | ||
| CNHU1005R04 | 10.00 | 10.06 | 5.4 | 0.4 | - | ● | ● | |
| CNHU1005R08 | 10.00 | 10.06 | 5.4 | 0.8 | - | ● | ● | |
| CNHU1005R16 | 10.00 | 10.06 | 5.4 | 1.6 | - | ● | ||
| CNHU1205 | 12.70 | 10.06 | 5.4 | - | 0.2 | |||
| CNHU1205R04 | 12.70 | 10.06 | 5.4 | 0.4 | - | ● | ||
| CNHU1205R08 | 12.70 | 10.06 | 5.4 | 0.8 | - | ● | ● | |
| CNHU1205R12 | 12.70 | 10.06 | 5.4 | 1.2 | - | ● | ||
| CNHU1205R16 | 12.70 | 10.06 | 5.4 | 1.2 | - | |||
| CNHU1205R36 | 12.70 | 10.06 | 5.4 | 3.6 | - | ● | ||
| CNHU1606 | 16.00 | 12.06 | 5.4 | - | 0.2 | ● | ||
| CNHU1606R08 | 16.00 | 12.06 | 5.4 | 0.8 | - | ● | ||
| CNHU1606R16 | 16.00 | 12.06 | 5.4 | 1.6 | - | ● | ||
| CNHU1606R24 | 16.00 | 12.06 | 5.4 | 2.4 | - | |||
| CNHU1606R32 | 16.00 | 12.06 | 5.4 | 3.2 | - | |||
| CNHX1005R | 10.00 | 10.06 | 5.4 | - | 0.2 | ● | ||
| CNHX100504R | 10.00 | 10.03 | 5.4 | 0.4 | - | |||
| CNHX100508R | 10.00 | 10.06 | 5.4 | 0.8 | - | ● | ||
| CNHU100516R | 10.00 | 10.06 | 5.4 | 1.6 | - | ● | ||
CNHU：TSCN side milling
CNHX：F90CN10 shell end milling / face milling
